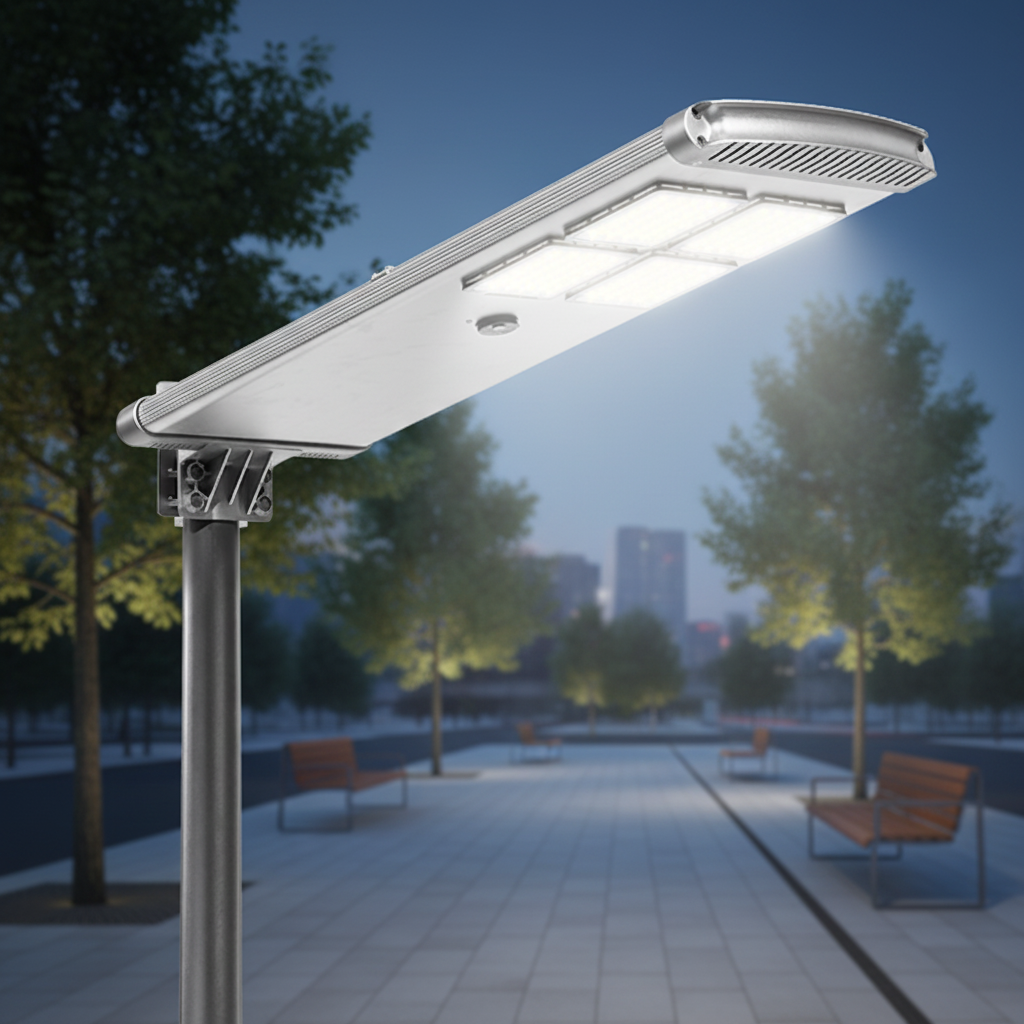

Aluminium 12V DC Led Solar Street Lights Super Brightness Cool White for Parking Lot

Product Description

One-stop solar street light design, solution and ODM&OEM service.

High Technology R&D Solar Lights, Deployed Worldwide

Product Details

Solar Light Overview

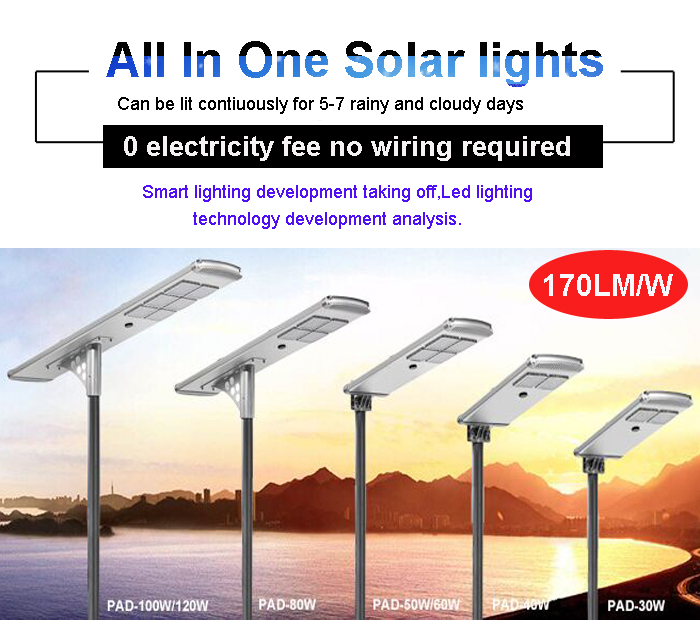

Solar Street Light Features

Features:

  • All in one intelligent design, 140 degree view angle.
  • Use anodic oxidation, resistance rust, Long lighting time up to 36-48 hours.
  • Energy Saving LED garden/street lights.

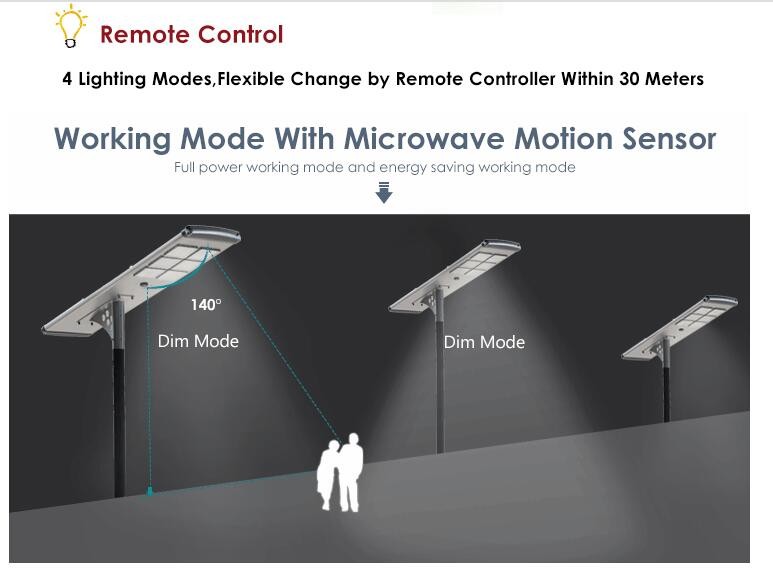

  • Different Motion sensor with timer, Radar sensor, long distance can reach 30 meters.
  • Pole optional, easy to install and maintenance.
  • Panels direction Angle is adjustable.
  • Battery separation does not lead to high temperature.
  • Have photo sensor turn on at night, turn off daytime, also can according to customer design the working time.

Product Introduction

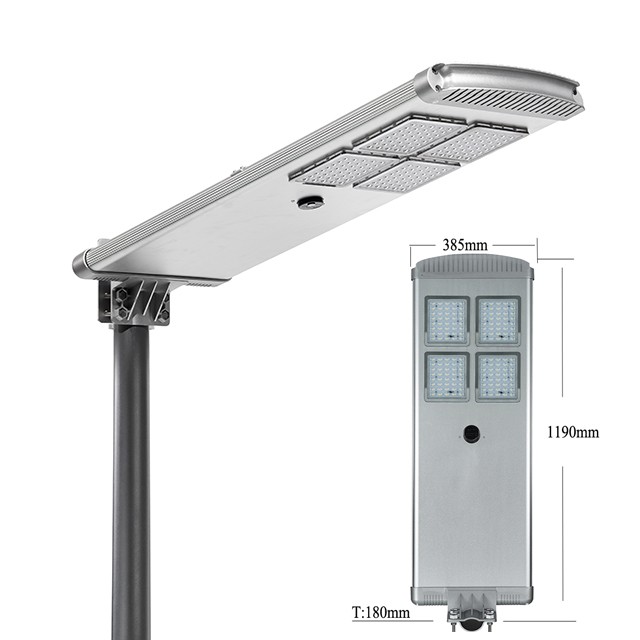

Integrated Solar Street Light

The integrated solar street light, which can also be called the all in one solar street light, combines the high efficient solar panel, Li-battery can be used for 8 years, high brightness leds, intelligent controller, and anti-burglary installation support together. It uses several practical and good control technology, such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free, and the performance of water-proofing and heat dissipation are also perfect.

Product Parameters

Integrated Solar Street/Garden Light (60W) Model: JKC-PD-60W-M
Solar Panel Max Power 18V 80W (imported high efficiency monocrystalline silicon)
Life Time 25 years
Battery Type LifePO4 battery (42AH)
Life Time 3 years
LED Lamp (with motion sensor) Max Power 12V 60W
LED Chip Brand Bridgelux 3030 led chips
Lumen 10200lm
Life Time 100,000 hours
Viewing Angle 140°
Charge Time By Sun 6 hours
Discharge Time Full Power More than 15 hours
Saving Mode More than 30 hours
Working Temp. Range -25℃ to +65℃
Color Temp. Range 6000K-6500K (3000K-7000K can be customized)
Mounting Height Range 5-8m
Space between Lights Range 25m-30m
Main Material Aluminium alloy
Certificate CE / ROHS / IP65
Warranty Period 3 years

Product Details Show

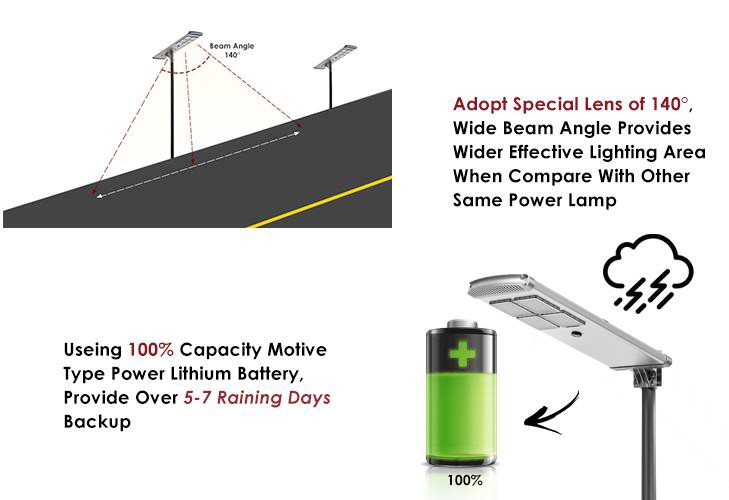

Product Angle 1

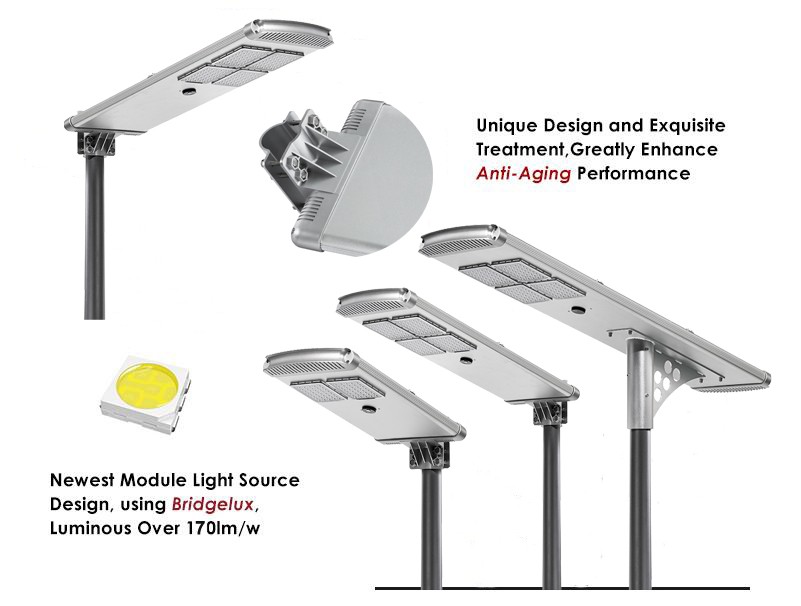

Product Angle 2

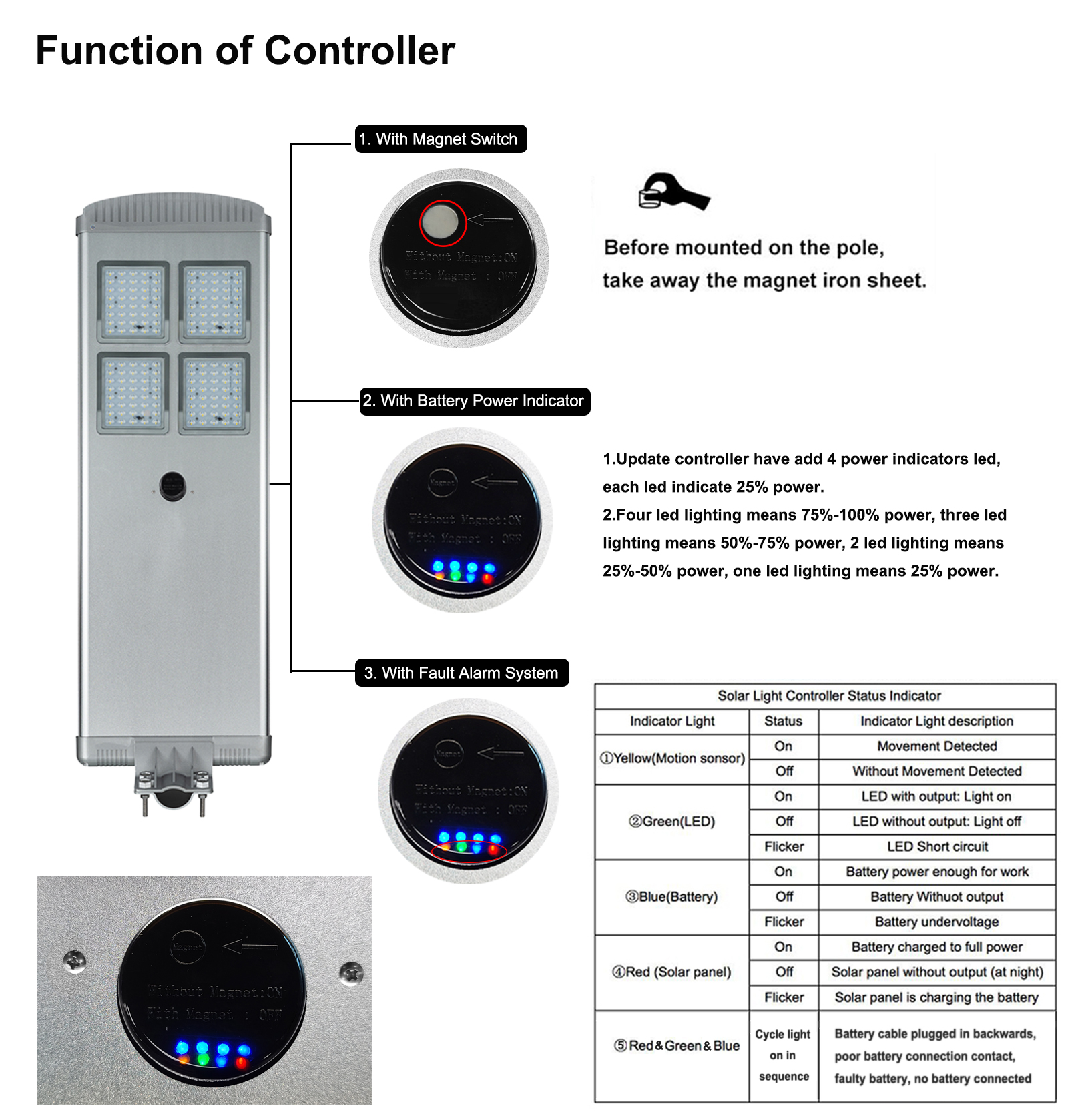

Product Detail Zoom

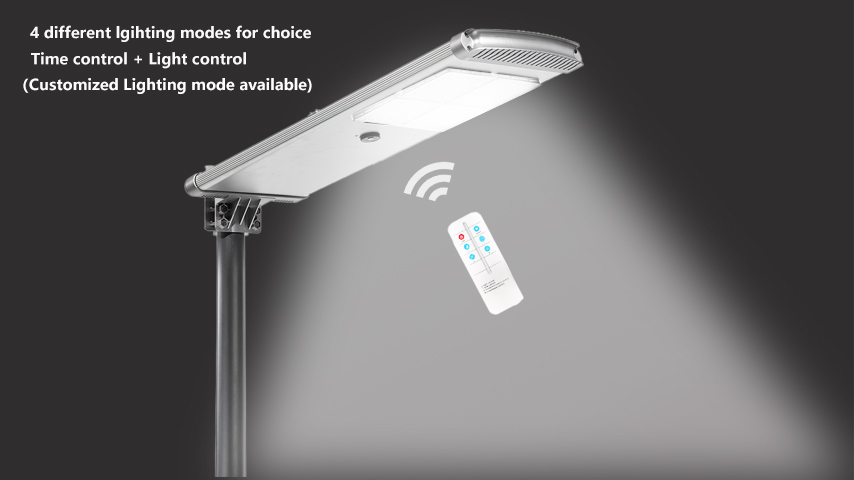

Product Component
Product Back Side

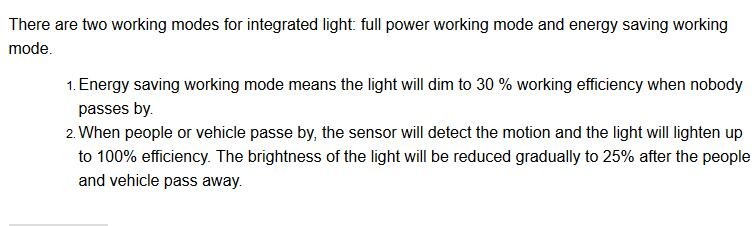

Product Sensor Detail

Why Choose Us

Why Choose Us Banner
  • 100% Original quality
  • Top Industry Supplier.
  • Low Prices Direct From Factory Suppliers.
  • Fast Delivery Around The Globe.
  • High Quality With Global Standards.
  • Goods must be passed QC and test before shipping out.
  • After-sales: 3 year warranty. In this period, we will provide free repair for problem caused by non-human factors.
  • Safe shipping way and payment.
  • Convenient & Friendly Customer Service.
Quality Certificate

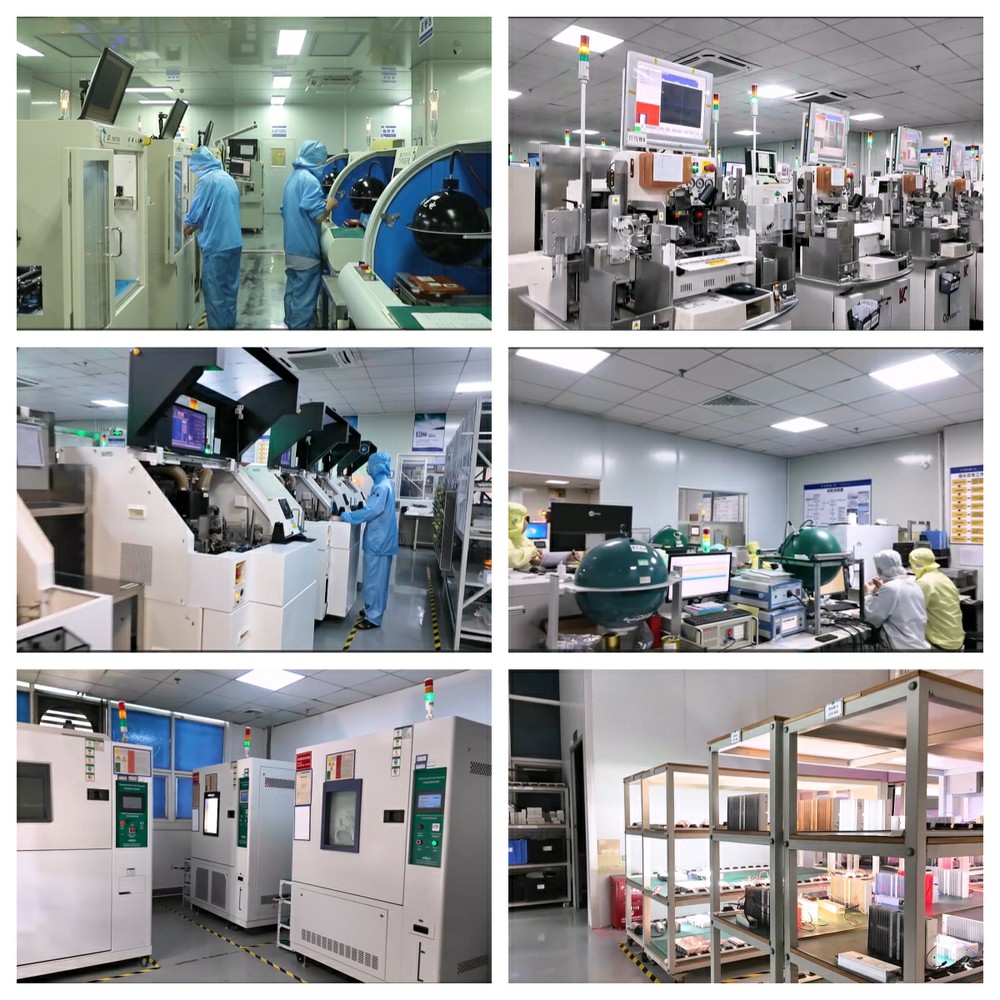

Production Process
Inspection Standards
Testing Phase
Quality Standard Badge

Product Processing

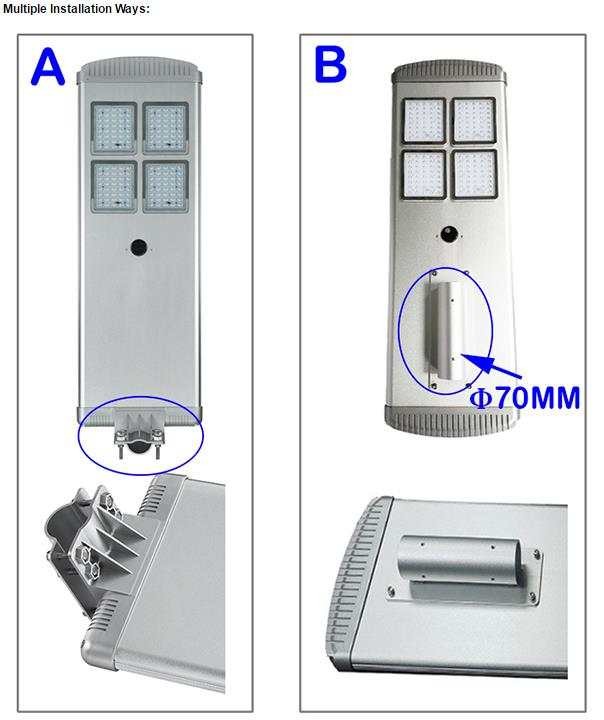

Assembly Process 1
Assembly Process 2

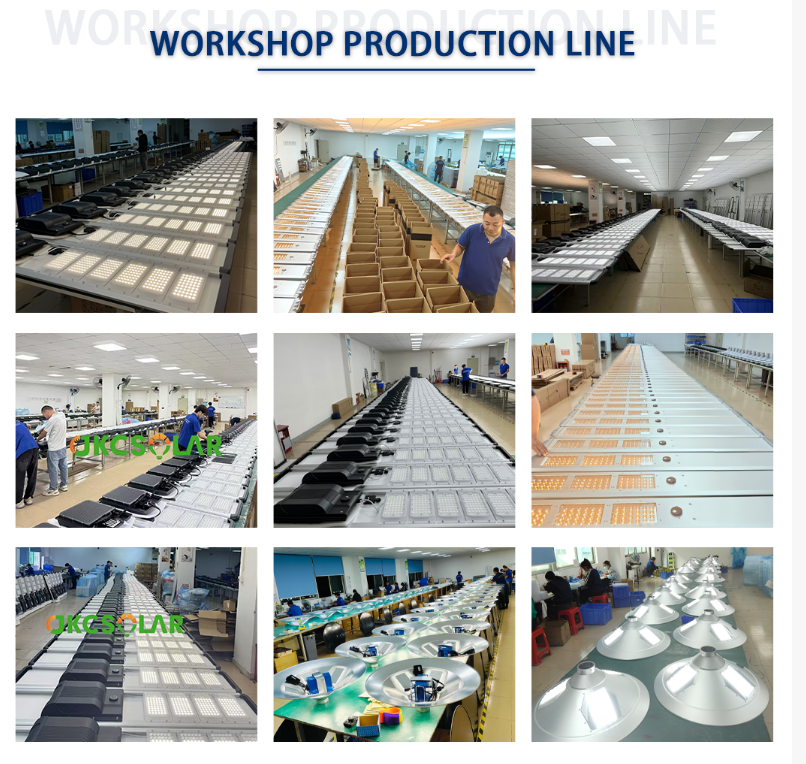

Quality Testing 1

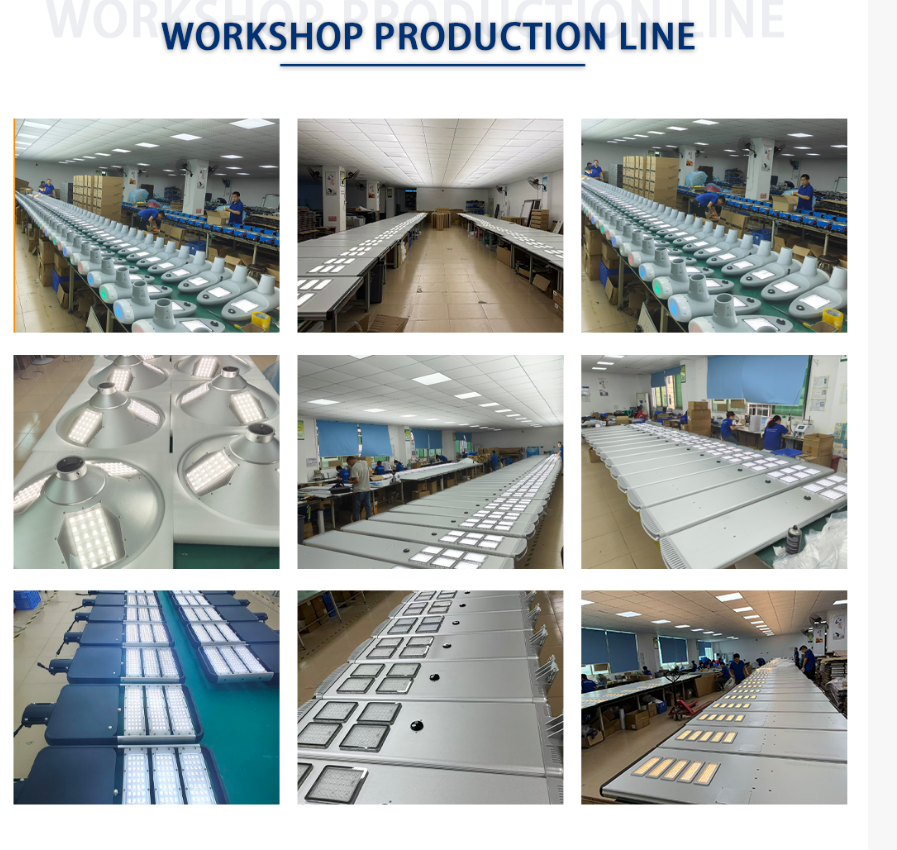

Quality Testing 2

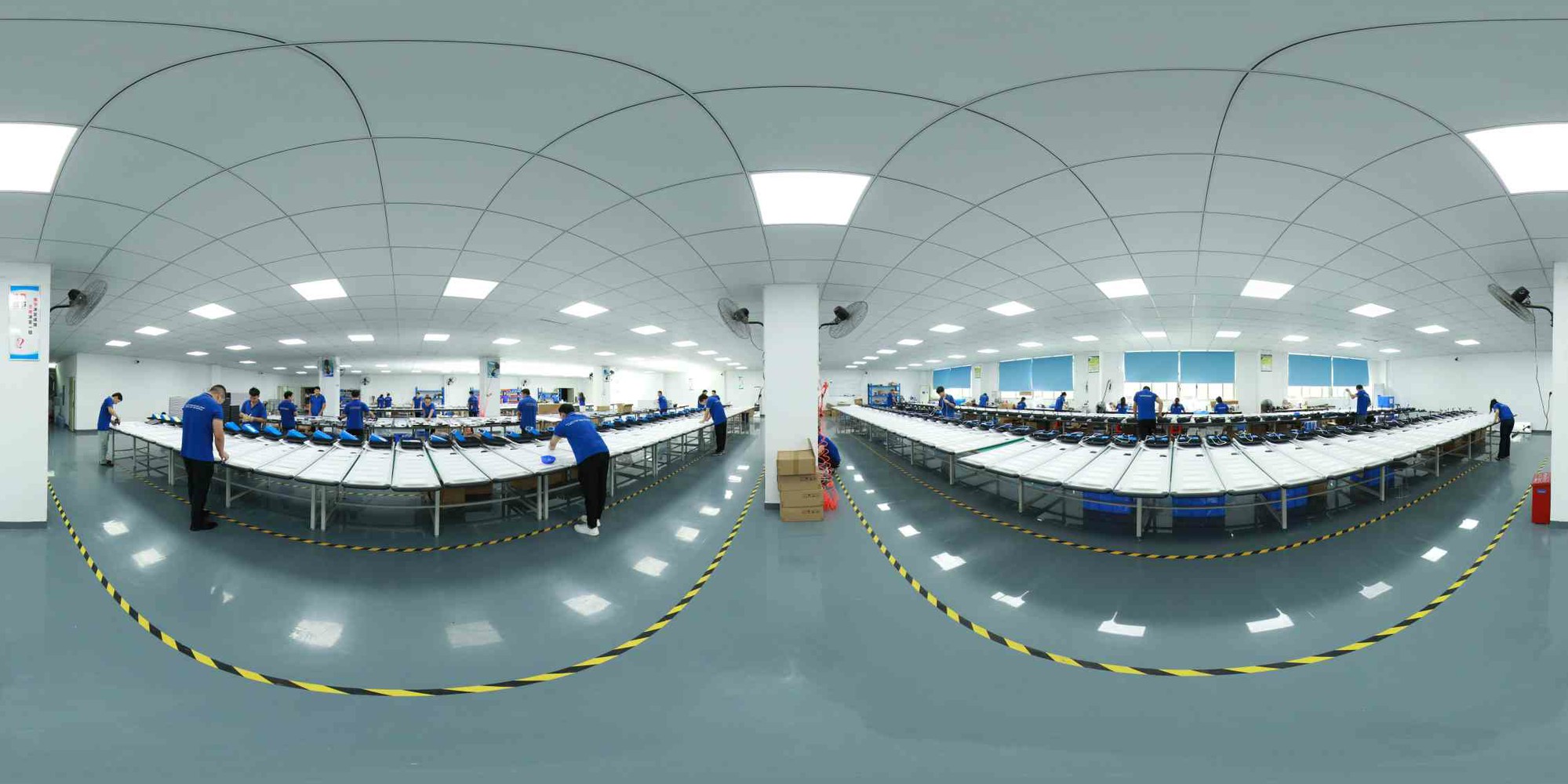

Manufacturing

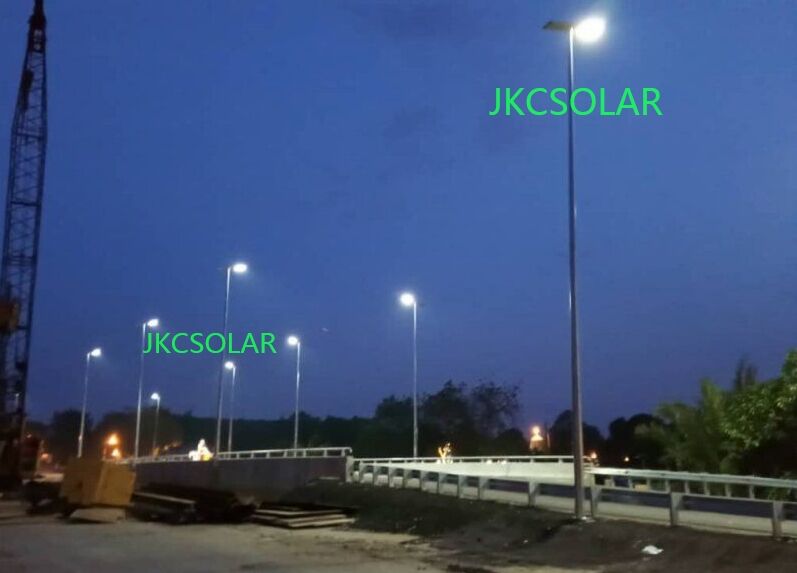

Final Product Stage
Factory Testing Certificate

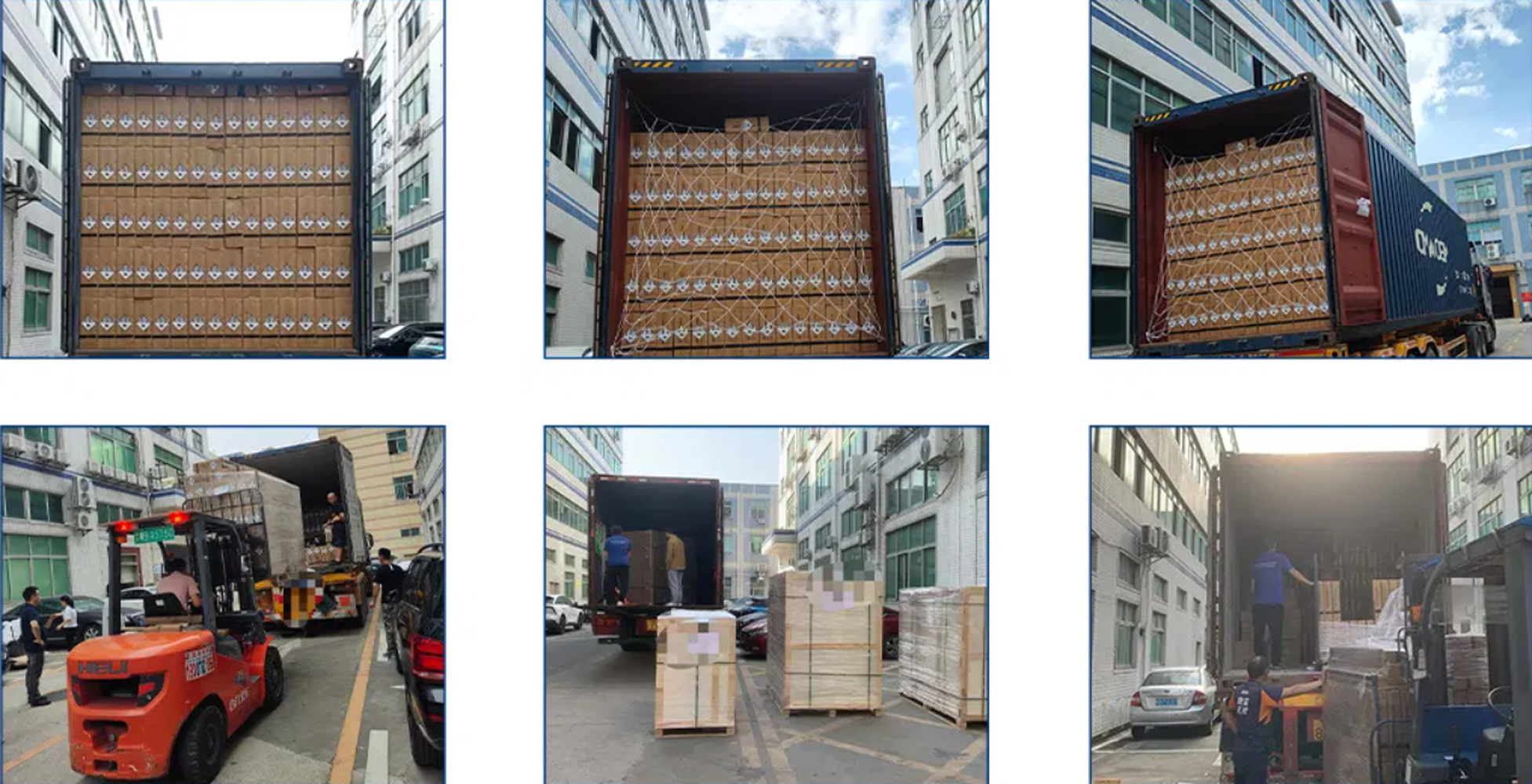

Product Packing

JKC-PD-60W-M Packing & Shipping Specifications
Packing & Weight Product Size 1190*385*180mm
Product Weight 24KG
Packing Box 1199*393*186mm
Carton Size 1199*393*186mm
Qty/Ctn 1 set / ctn
G.W. for Carton 26KG
Container Loading Capacity 20'GP 280 sets
40'GP 620 sets

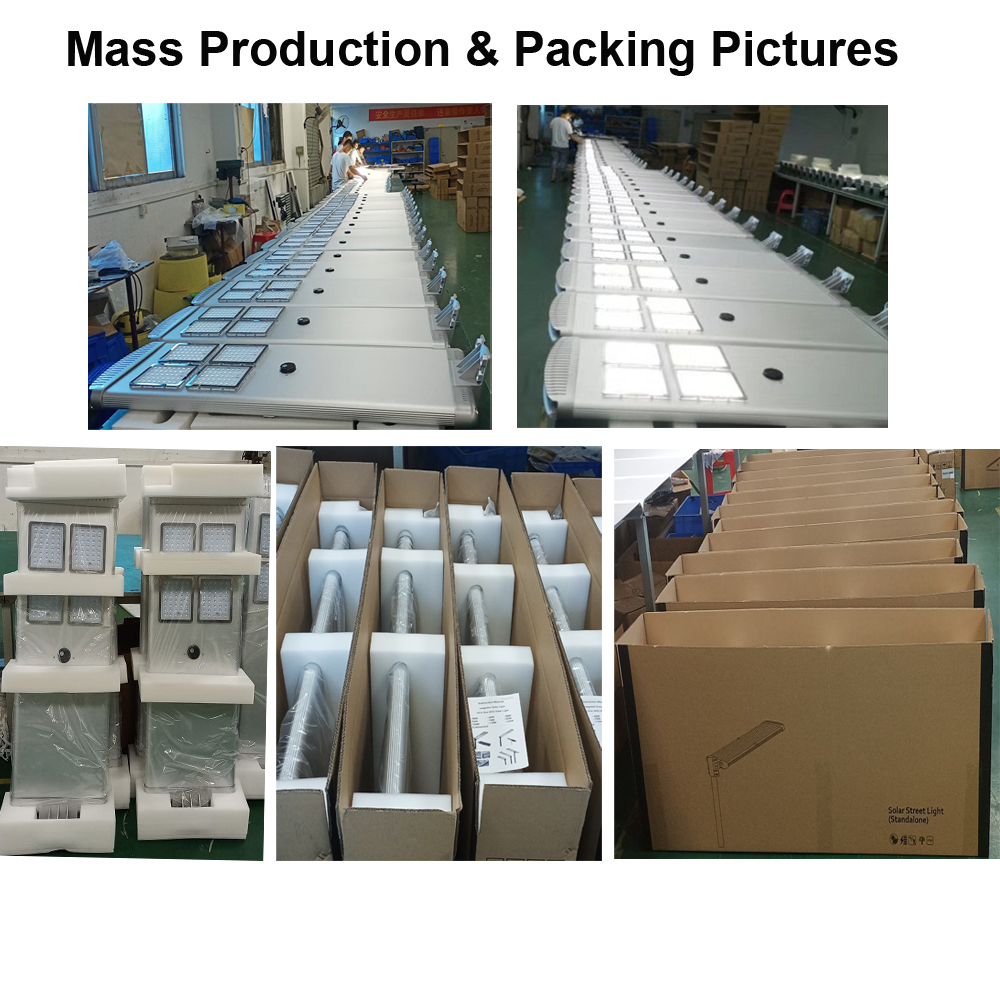

Packaging Setup

Main Products

Main Solar Lights Catalog

Frequently Asked Questions

Why choose our integrated all in one solar led street lights?

1) We are developing at the fastest speed in the solar lighting field.

2) More than 10 years of experience in LED lighting and we only offer top quality LED lights.

3) Well equipped with complete facilities and workers with rich experience to ensure short delivery time.

4) We have a strict quality control team and excellent pre-sales, sales & after-sales service.

5) We can offer good discount prices for your bulk orders.

How many years of warranty do you provide?

Usually, our warranty is 3 years. If you need a longer warranty, we can customize it for you. Any quality problems occurring within the warranty period will be replaced for free.

What color temperature can you offer?

Usually, the color temperature is 6000K-6500K. Other ranges from 3000K to 7000K color temperatures are also available for customization.

How do the lights perform in rainy, cloudy, or snowy days?

Our solar integrated LED street light is waterproof (IP65). You don't need to worry about harsh weather. After being fully charged, the high-capacity battery can keep the lights working for 3-7 rainy, cloudy, or snowy days.

How are the solar led street lights shipped to our country?

Usually, sample orders are shipped by express or air directly to your door, taking 3-6 days. Large bulk orders are shipped by sea, taking 15-35 days depending on your location.
