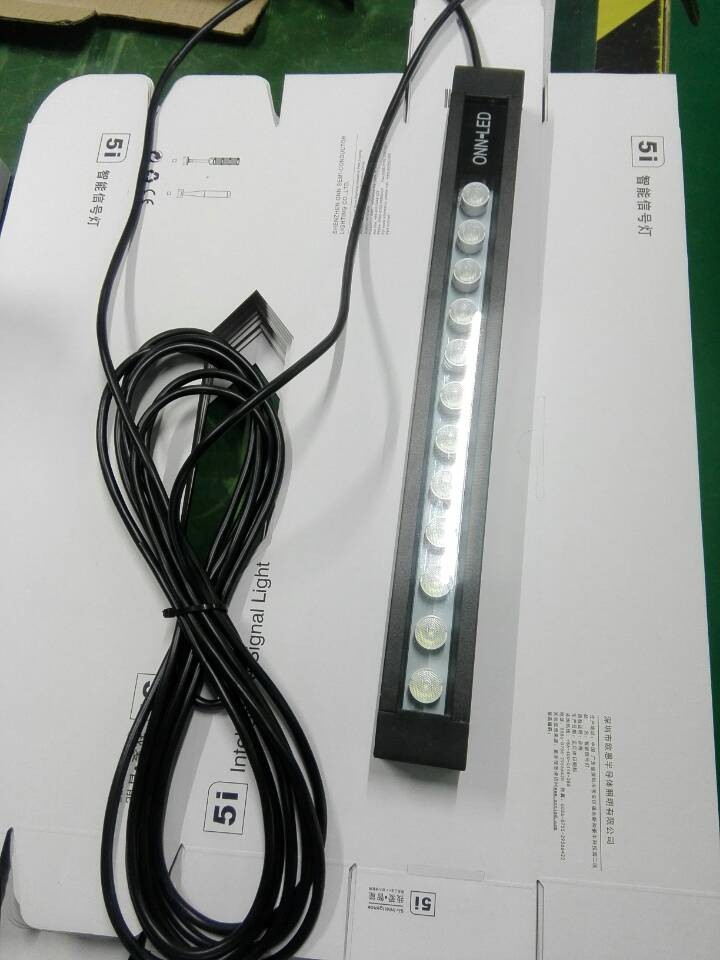

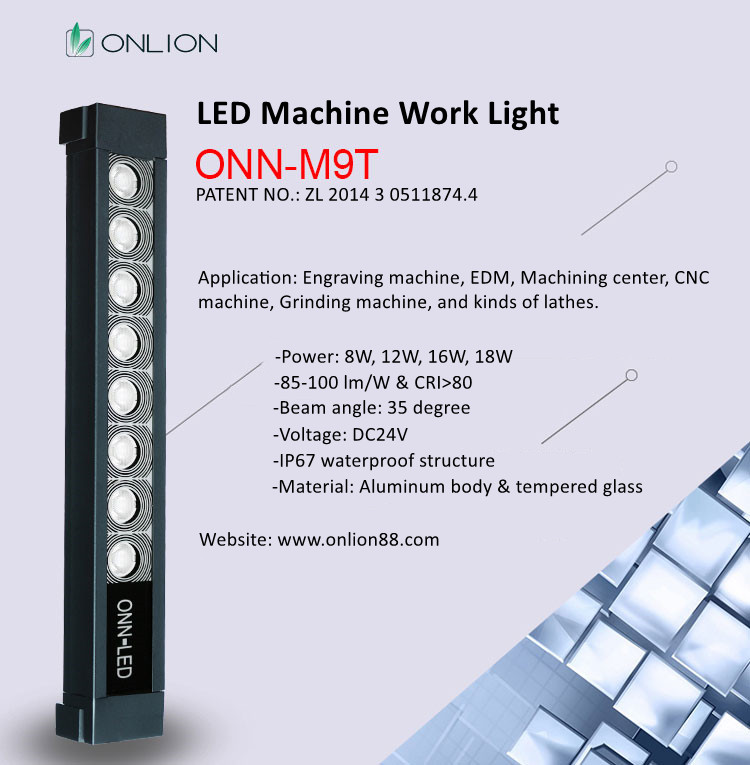

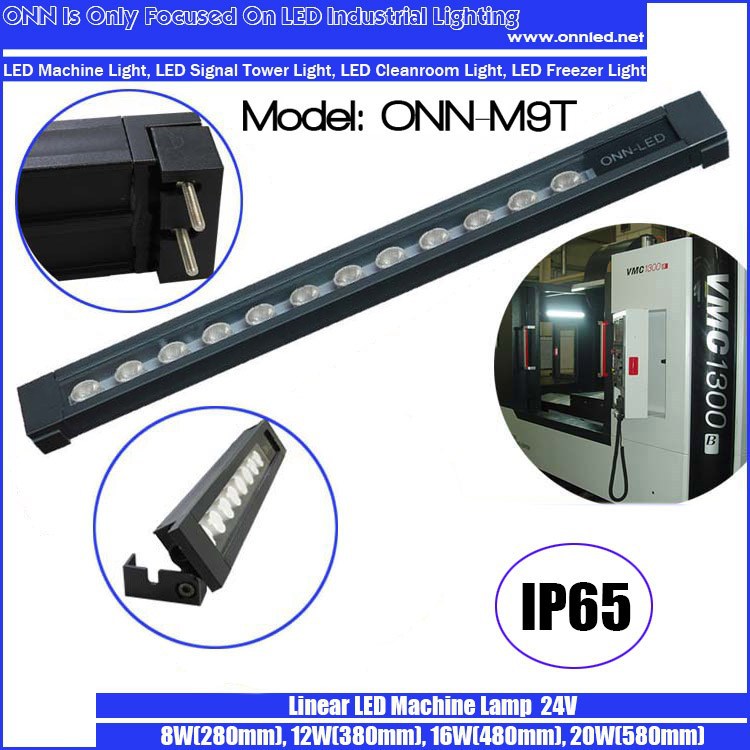

ONN-M9T LED Machine Work Light Aluminum + Tempered Glass DC24V Cnc Light Rotatable Bracket Installation CE ROHS 18W 8W

Product Description

M9T CNC LED Machine Work Light IP67 Waterproof 85lm/w Aluminum Lamp + Tempered Glass

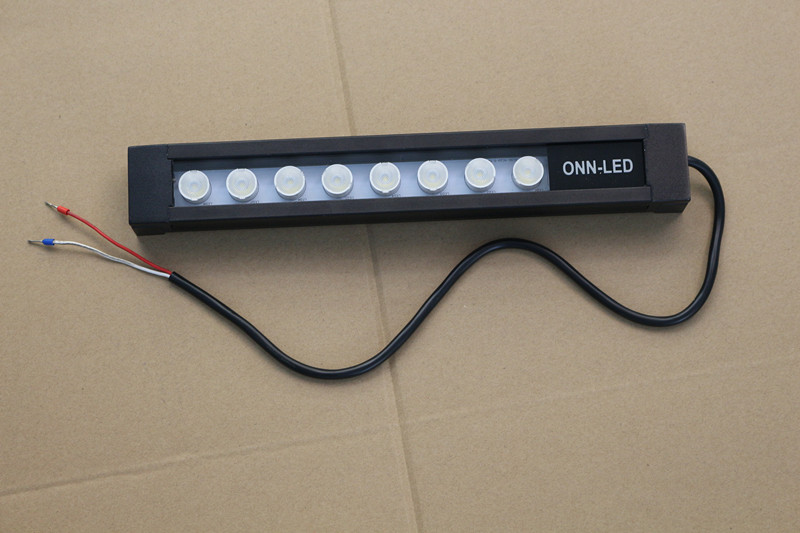

M9T CNC LED Machine Work Light

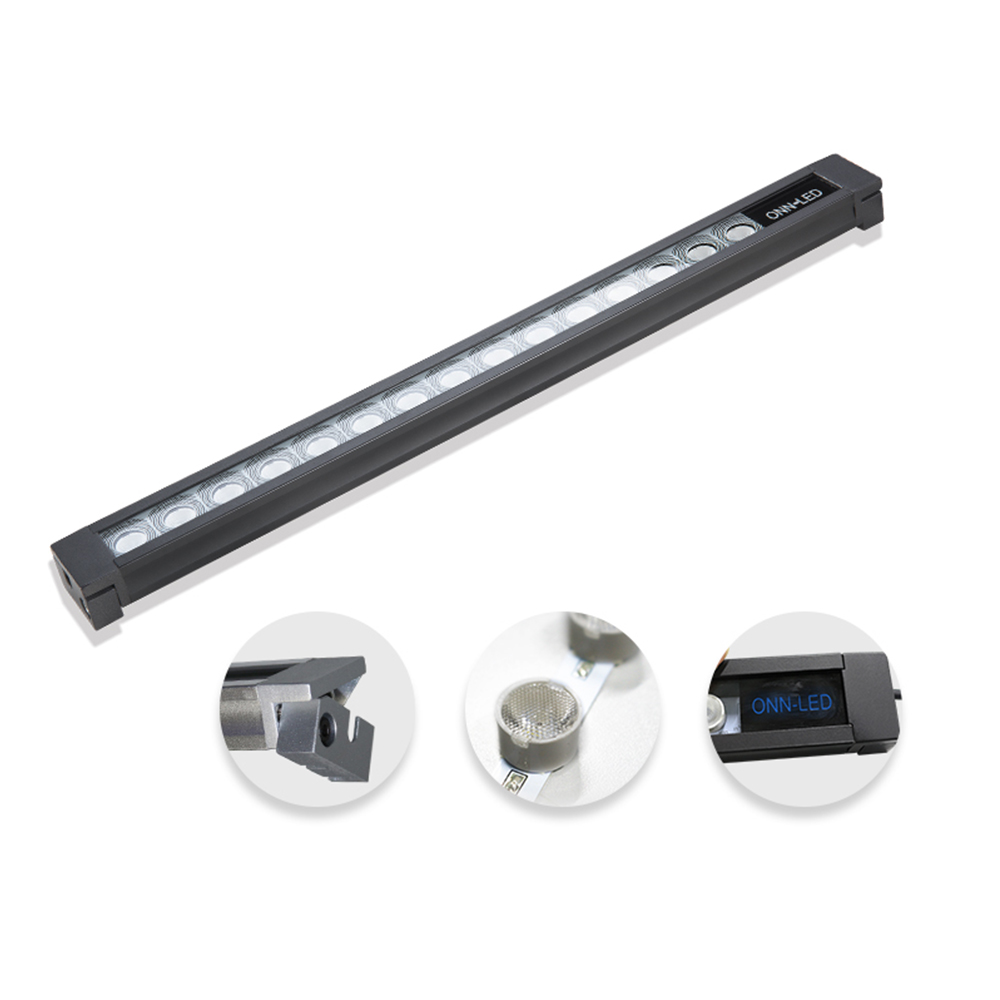

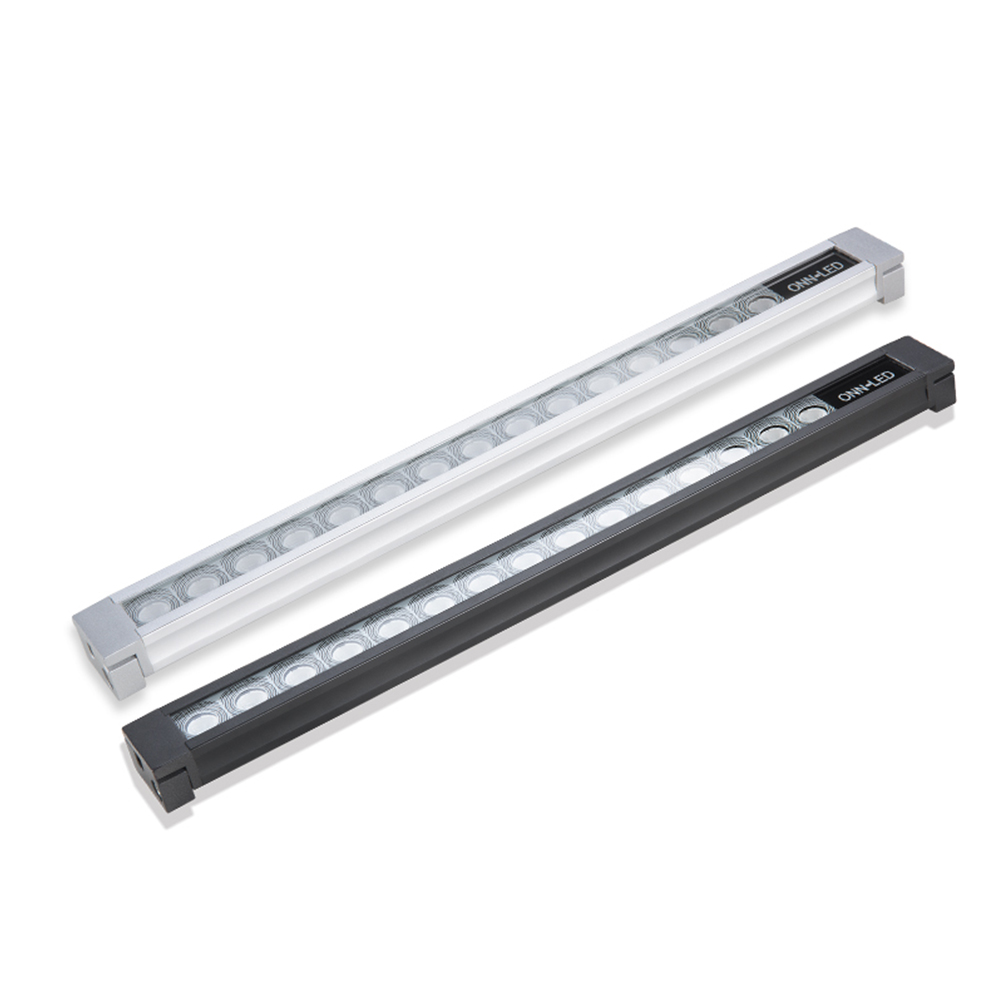

M9T Detail 1 M9T Detail 2 M9T Detail 3
Product Description

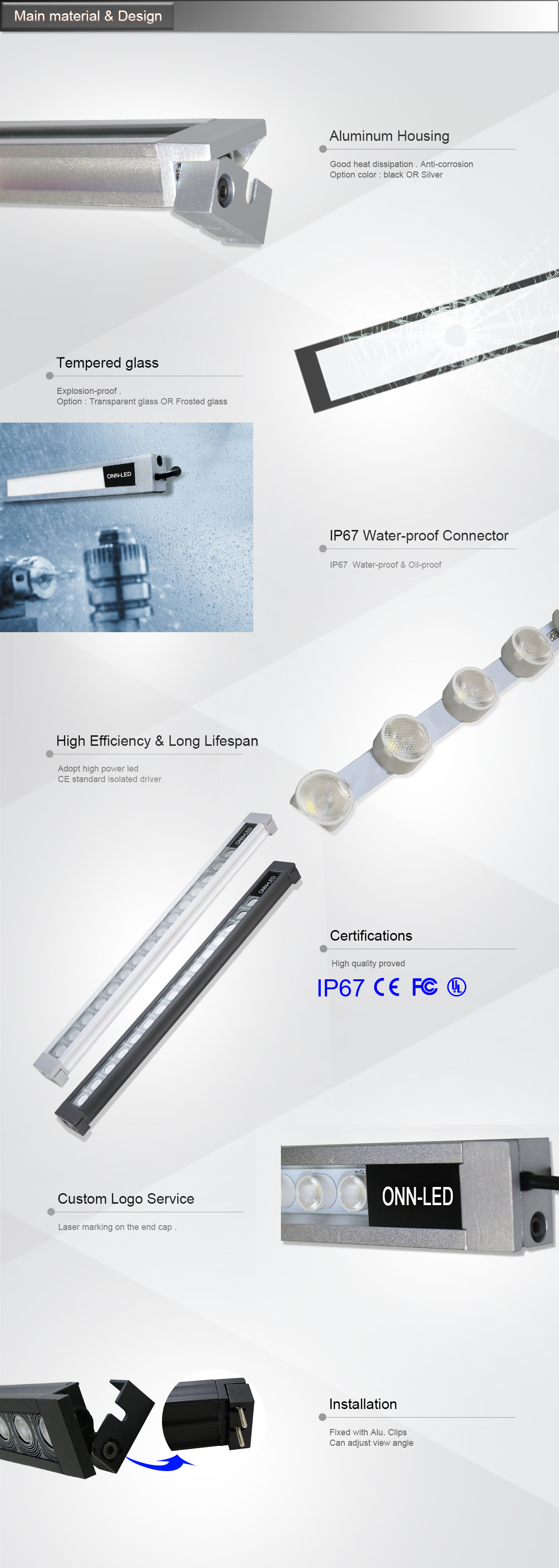

M9T Product Description
Features
1 M9T is designed for harsh environment.
2 Very slim and thin to meet special request on product's size.
3 Using anodized aluminum lamp body and tempered glass.
4 IP67 rating, resistant to high pressure wash, coolants and detergents.
5 High brightness SMD3030 LED chip, 85lm/w.

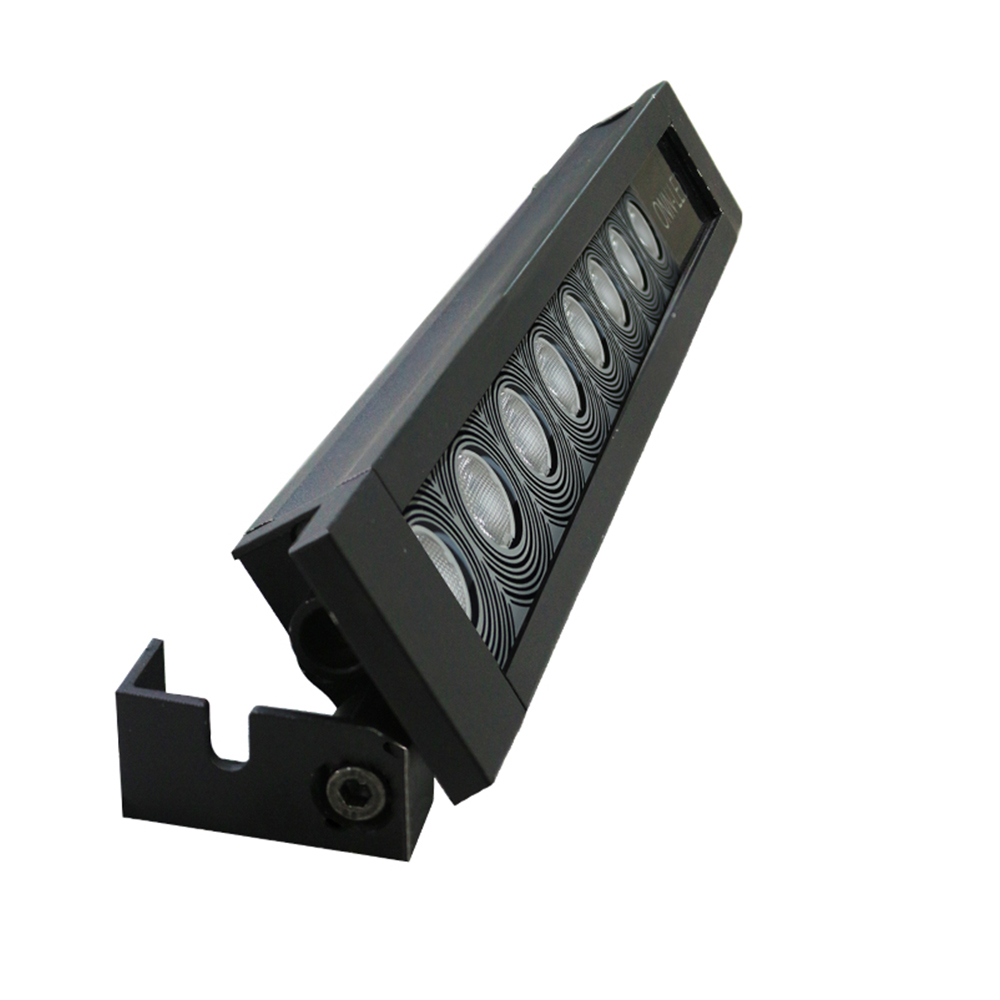

6 90 degree rotatable to control lighting direction.
7 Easy to install, magnet installation optional.
Specifications
Power (Length) 8W(280mm), 12W(380mm), 16W(480mm), 18W(580mm) Color Temperature 2800-3200K, 4000-4500K, 6000-6500K
Input Voltage (Current) DC24V Material Aluminum housing, Tempered glass
Lumen Efficiency 85lm/w Lifetime 50,000 hours
CRI >80 Working Temp / Humidity -40~45℃ / 10%-90%
IP Rating IP67 Storage Temp / Humidity -40~60℃ / 10%-90%
Beam Angle 35 degree Installation Fixed by screws
Ordering Code
M9T - B 1 - 280 - 8W
1. Model M9T
2. Input Voltage B: DC24V | C: AC 100-265V
3. CCT. 1: 6000-6500K (cool white) | 2: 4000-4500K (natural white) | 3: 2800-3200K (warm white)
4. Length 280: 280mm | 380: 380mm | 480: 480mm | 580: 580mm
5. Power 8W, 12W, 16W, 18W

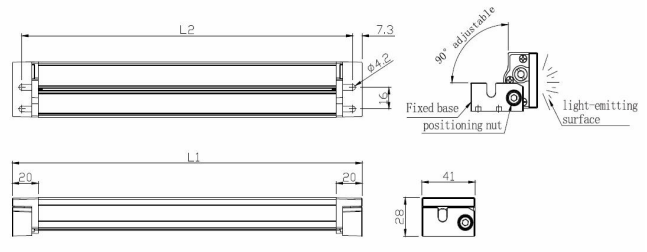

Product Size Drawing
Product Size Drawing

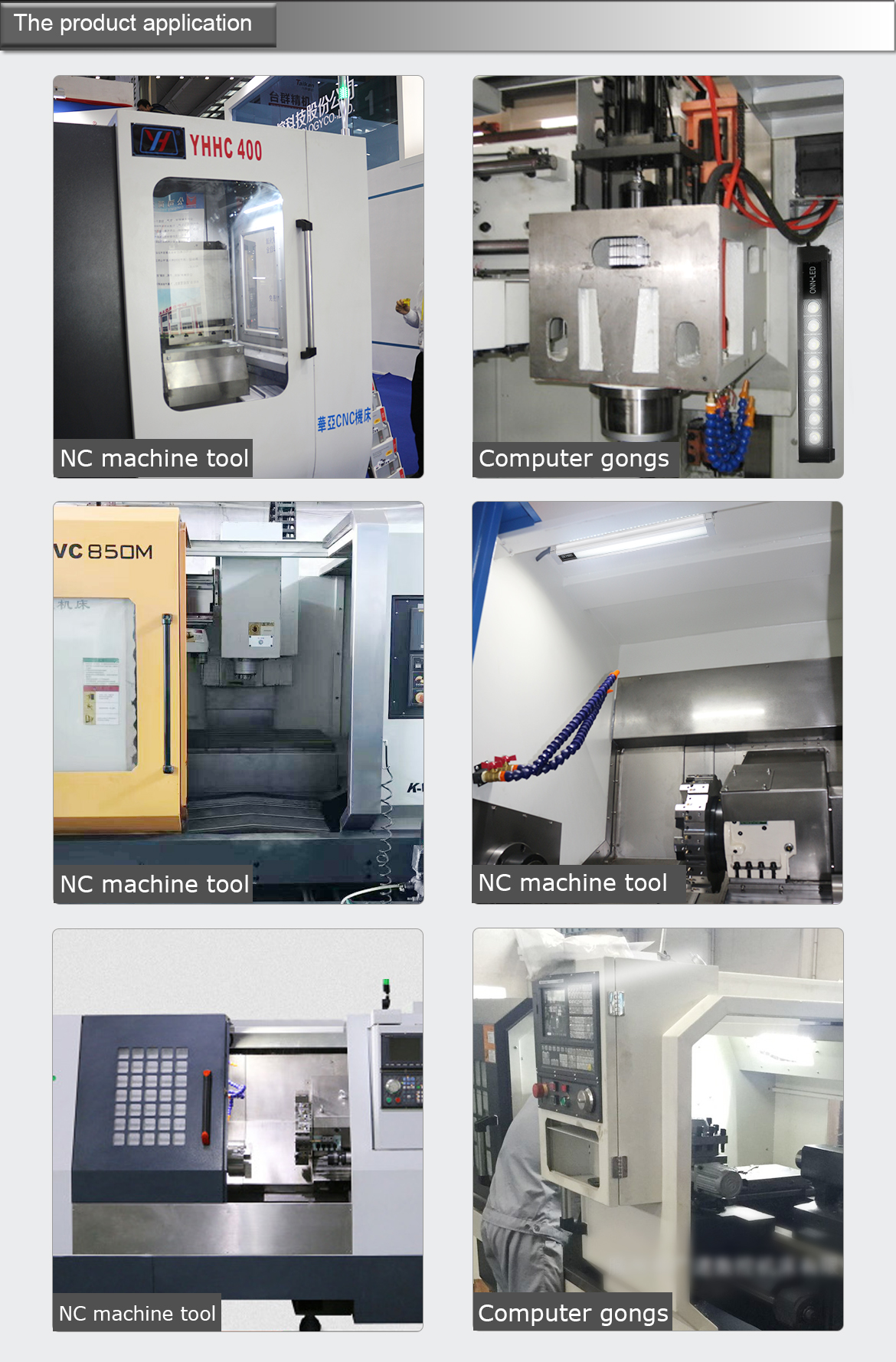

Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Laboratories.
Applications
Related Products

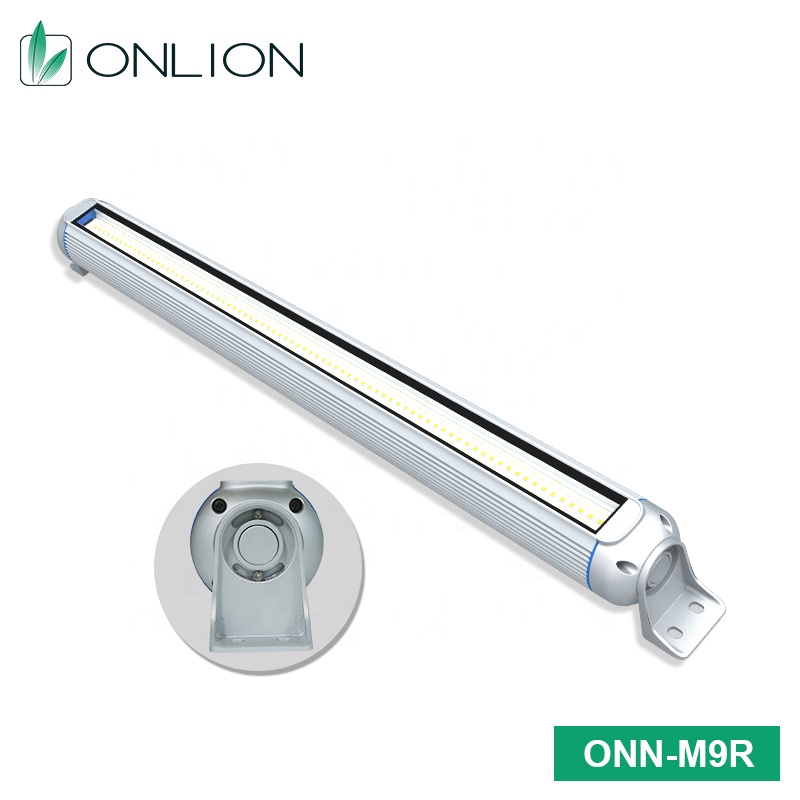

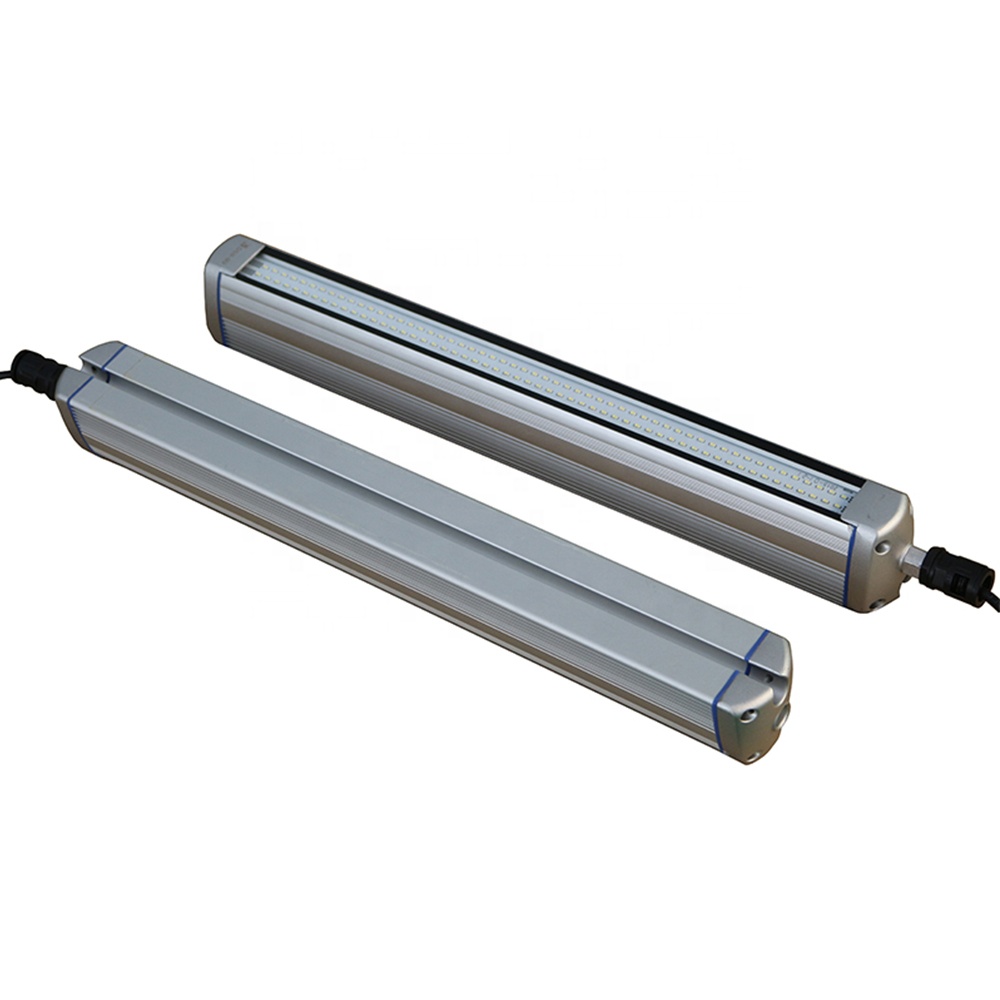

Related Product 1 Related Product 2 Related Product 3

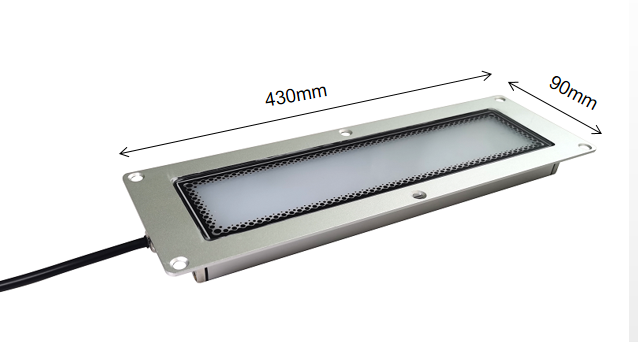

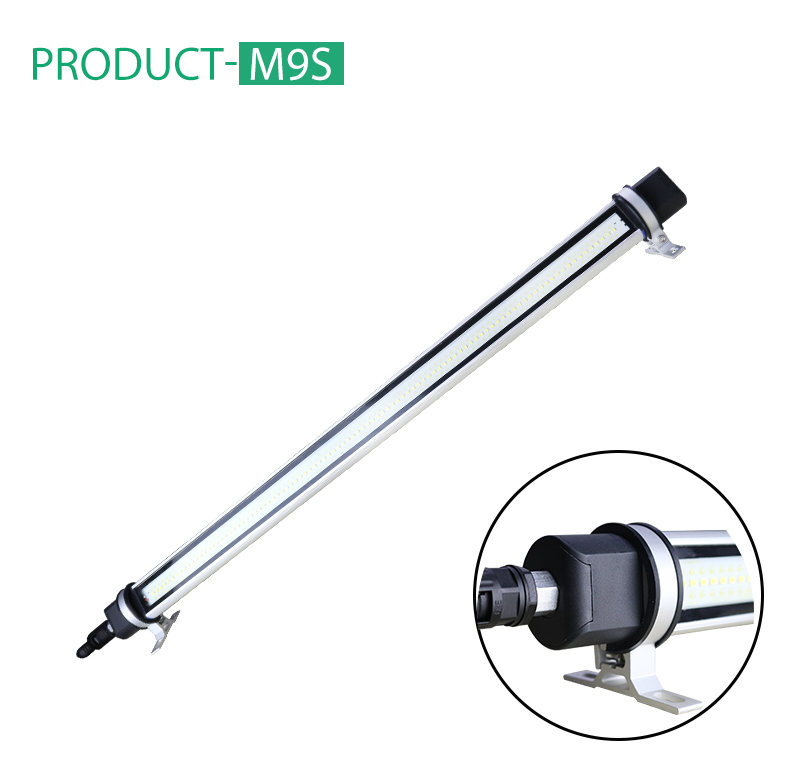

Related Product 4 Related Product 5 Related Product 6

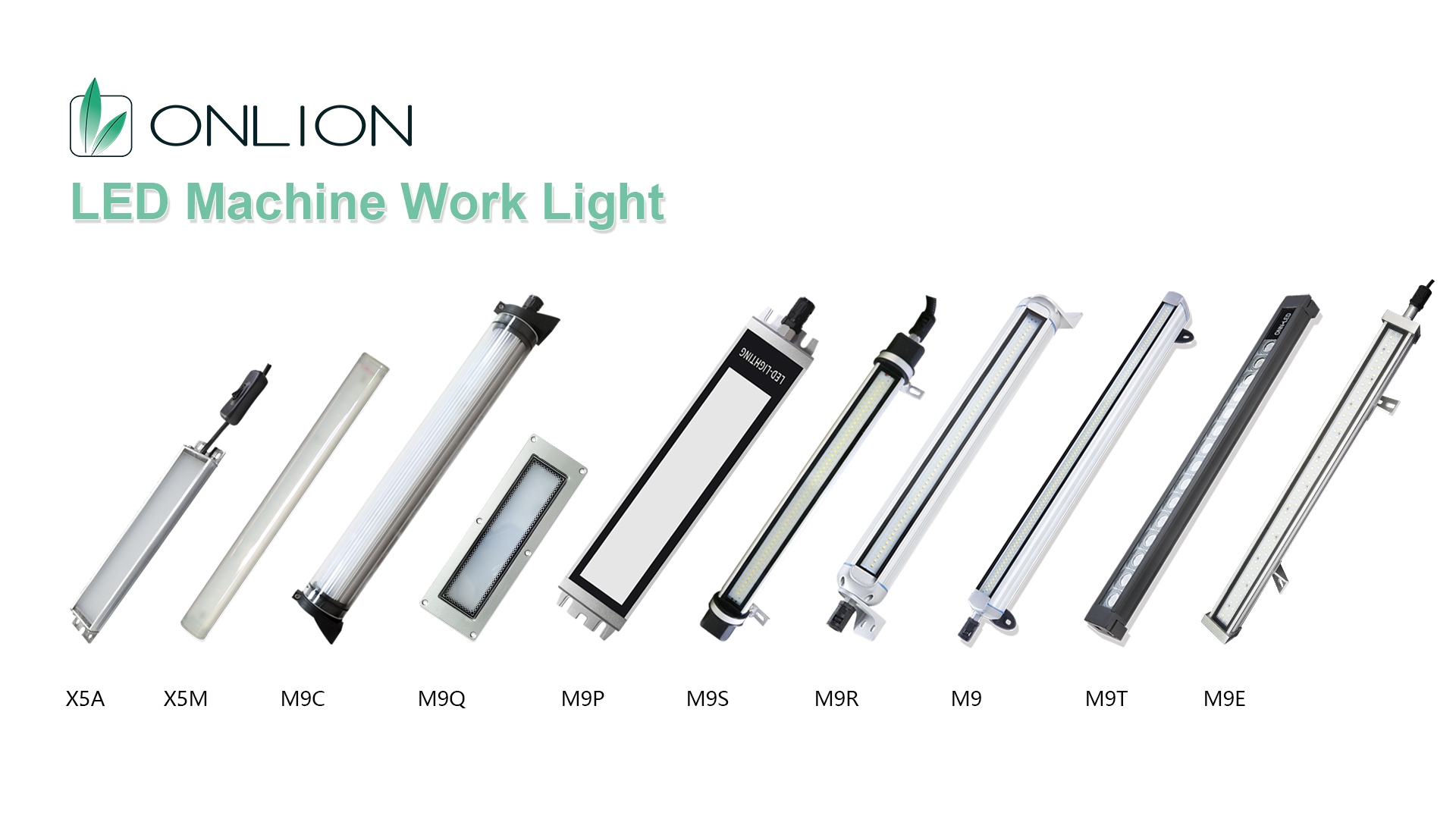

Related Product Spotlight
Exhibition Fairs
Exhibitions
Certifications (Patent, ISO9001, FCC, CE, TUV-CE, UL)
Certifications
Customers
Customers Reference
Our Service
1 Produce and supply high-quality led industrial lights, including led machine work lights, led signal tower lights, led freezer lights, led cleanroom lights and so on.
2 After-sale service. We make sure every light from us is strictly tested before delivery. If any quality failure, we have an 18-36 months warranty based on different types of lights.
3 OEM and ODM service. We focus on led industrial lights for 16 years. We are professional and experienced.
Service Flow
Frequently Asked Questions
Q What are the key waterproof capabilities of the M9T light?
The M9T light features an IP67 rating, which provides robust protection. It is highly resistant to high-pressure washing, coolants, and detergents, making it ideal for harsh CNC environments.
Q Can the angle of the light beam be adjusted after installation?
Yes, the design allows the light to be rotated up to 90 degrees, giving users precise control over the illumination direction.
Q What materials are used for the outer casing of the light?
The light is constructed using an anodized aluminum body and tempered glass, ensuring durability and high resistance to wear and tear.
Q What options are available for input voltage?
The M9T supports two major voltage settings: Option B operates on DC 24V, and Option C operates on AC 100-265V.
Q How is this machine light installed?
Standard installation is done by fixing screws. Additionally, magnet installation is available as an optional config.
Q What are the color temperature options available for this LED light?
It supports warm white (2800-3200K), natural white (4000-4500K), and cool white (6000-6500K) to meet different working requirements.
