| PIXEL PITCH | 3MM | 3MM | 4MM |
| LED Encapsulation | SMD1921 | SMD1921 | SMD1921 |
| MODULE SIZE | 320*160MM | 192*192MM | 320*160MM |
| Driver mode | 1/16 scan, constant current drive | 1/16 scan, constant current drive | 1/8 scan, constant current drive |
| DISPLAY SIZE | 1600mmX960mm | 1728MMX960MM | 1600mmX960mm |
| HOUSING SIZE | 1640mmX960mm | 1768mmX960MM | 1640mmX960mm |
| RESOLUTION | 530X318pixels | 576X320pixels | 400X240 pixels |
| BRIGHTNESS | 3500~4500 nits | 3500~4500 nits | 4000~5000 nits |
| Viewing distance(m) | 3~50 | 3~50 | 5~50 |
| WEIGHT | 82kgs | 88kgs | 82kgs |
| POWER CONSUMPTION | 700W (Max) | 750W (Max) | 600W (Max) |
| VIEW ANGLE | H140°, V120° | H140°, V120° | H140°, V120° |
| REFRESH RATE | 1920Hz | 1920Hz, can be adjusted | 1920Hz, can be adjusted |
| SIGNAL INPUT SOURCE | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI | ||
| SCREEN LIFESPAN | >100,000 hours | ||
| CONTROL METHOD | Asynchronous systems with Wifi, 3G/4G, USB | ||

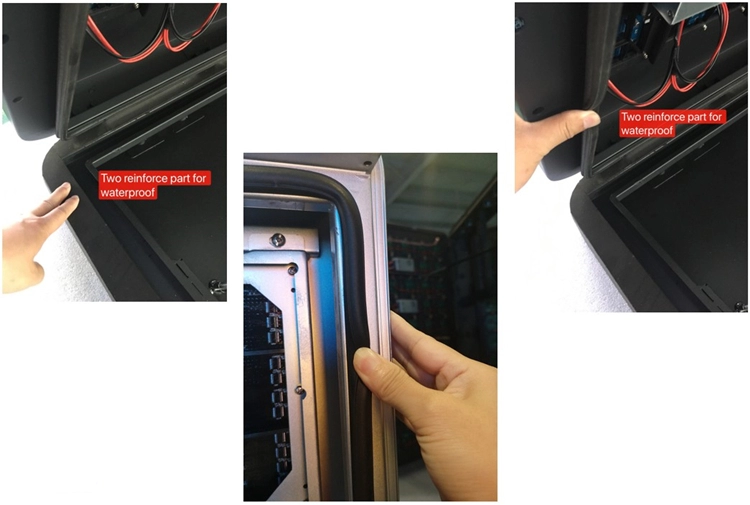

| IP GRADE | IP 65 | ||
| Working Voltage | AC 220V/110V ±10% | AC 220V/110V ±10% | AC 220V/110V ±10% |
| Cabinet material | Iron cabinet | Iron cabinet | Iron cabinet |
| OPERATION TEMPERATURE | -20°C~+50°C | -20°C~+65°C | -20°C~+65°C |

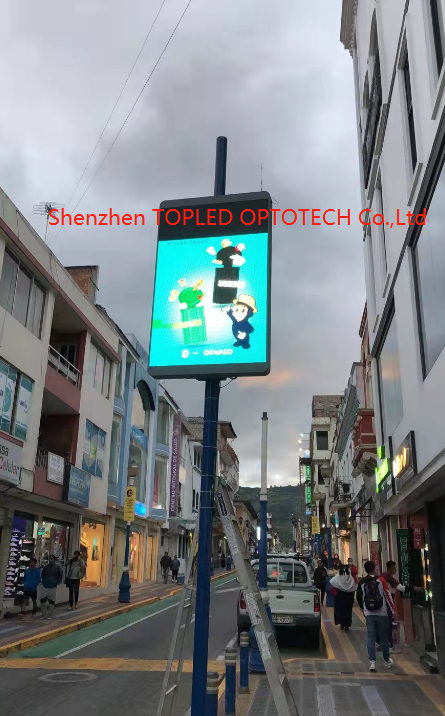

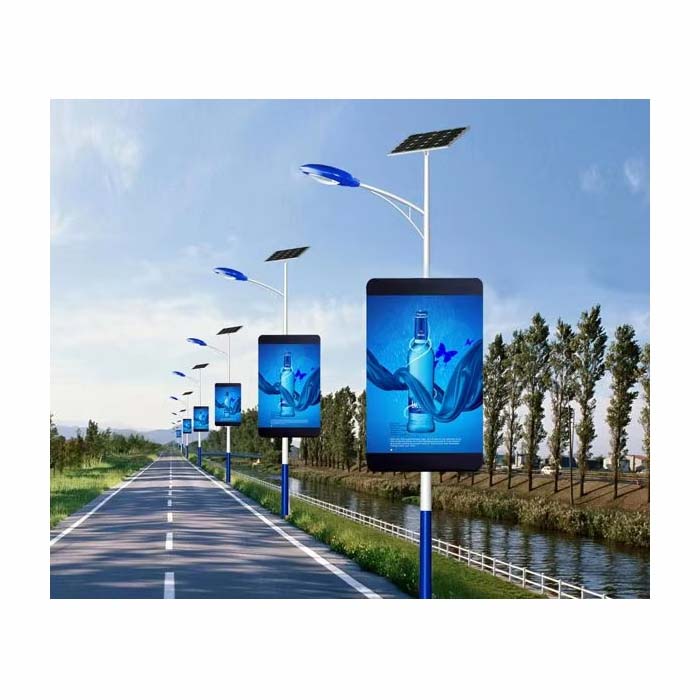

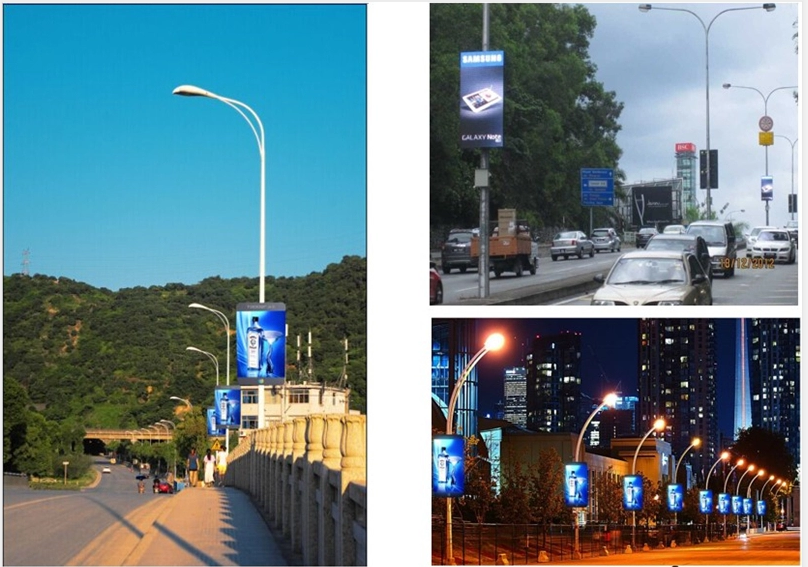

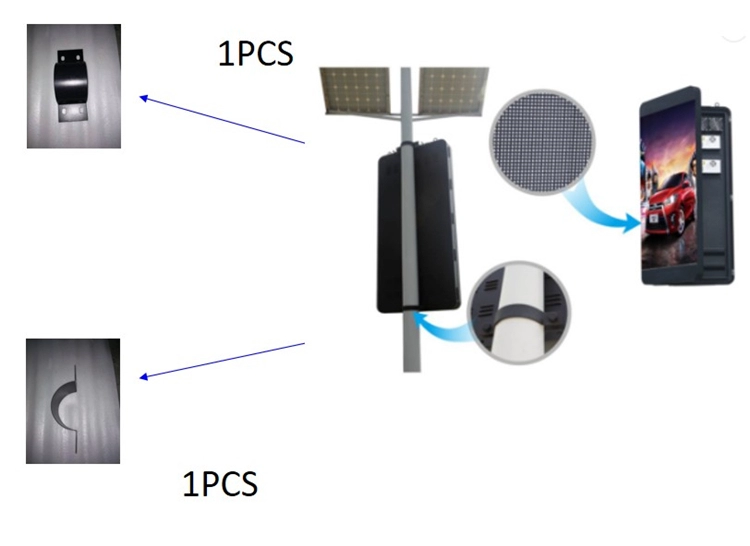

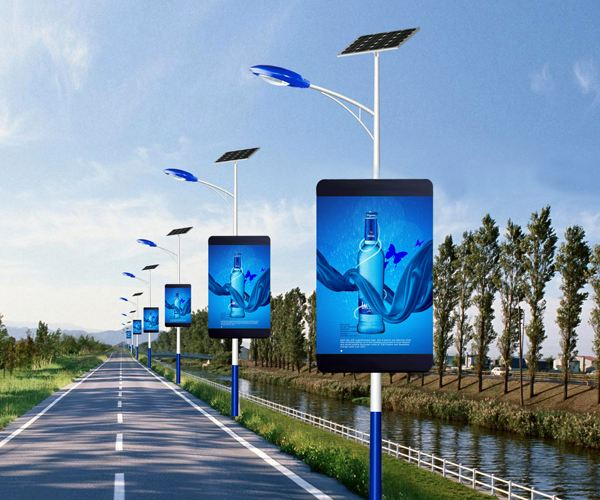

| INSTALLATION | Lamp Post Street | Lamp Post Street | Lamp Post Street |
