MANI Fashion Design Vapor Tight Tubular Fixture Waterproof IP65 IP67 IK10 LED Triproof Light for Residential, Hotel, Mall

Product Description

`
VR Showroom

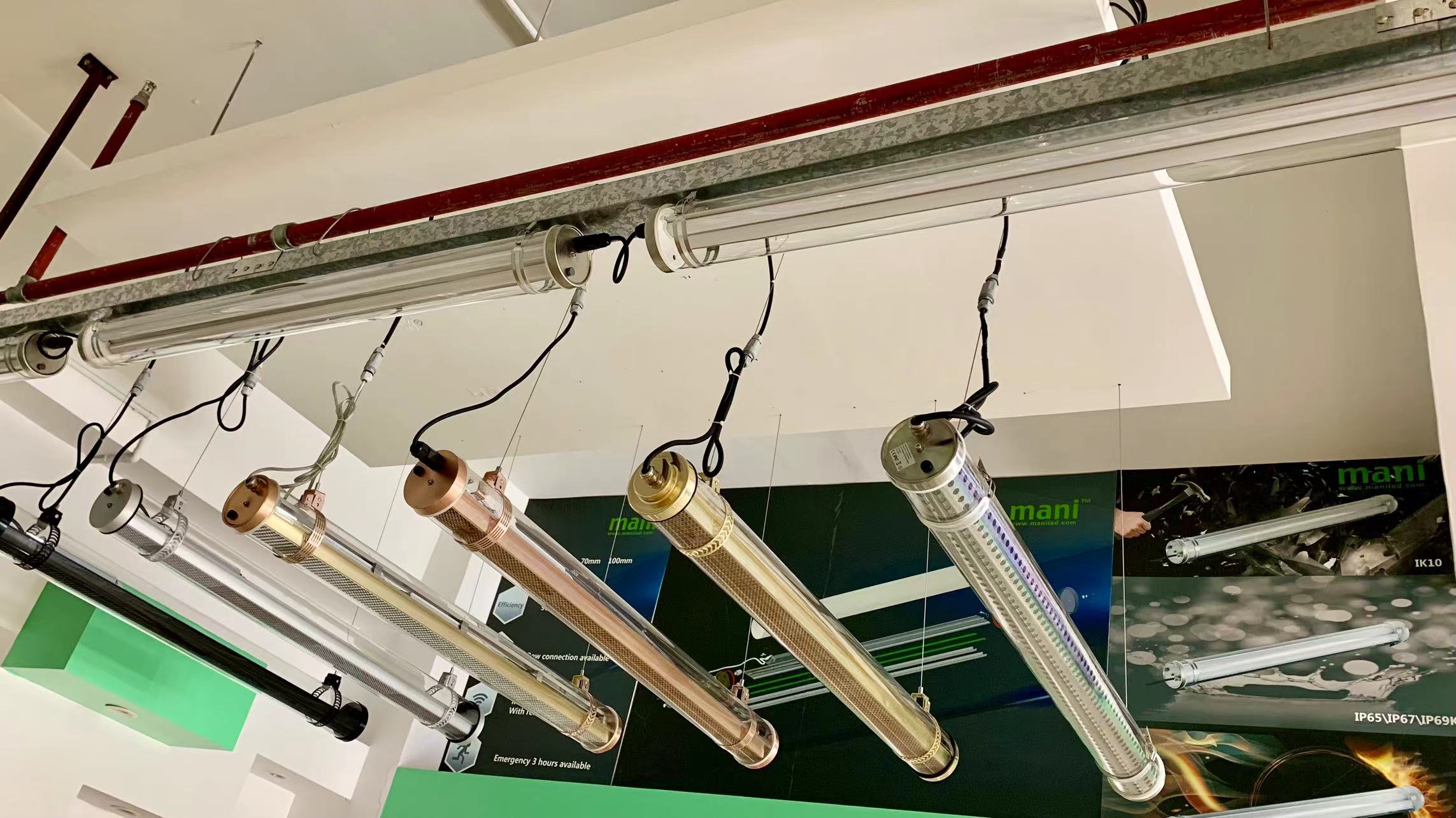

MANI Showroom Banner

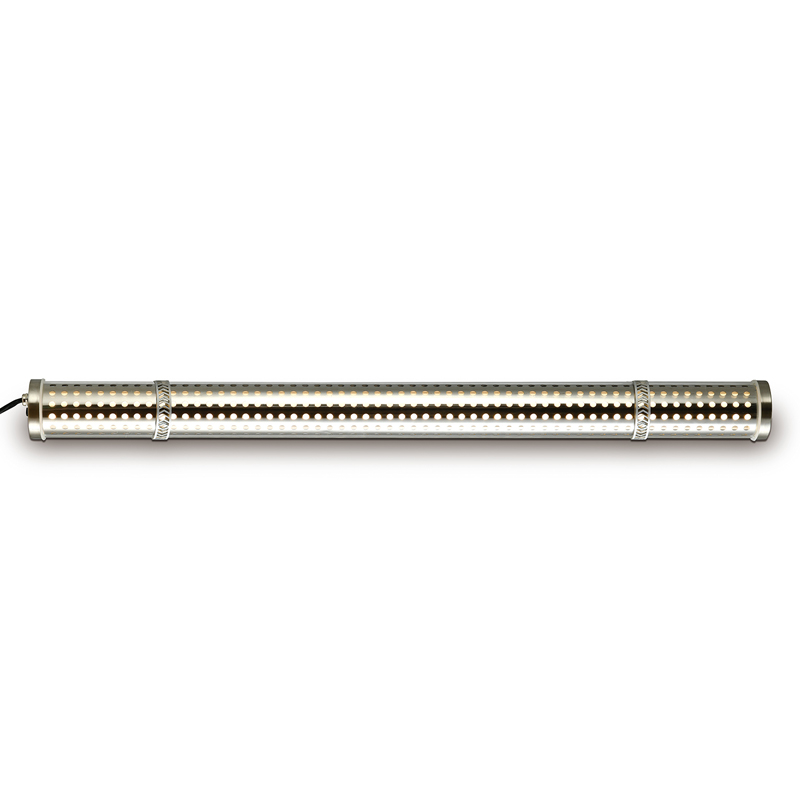

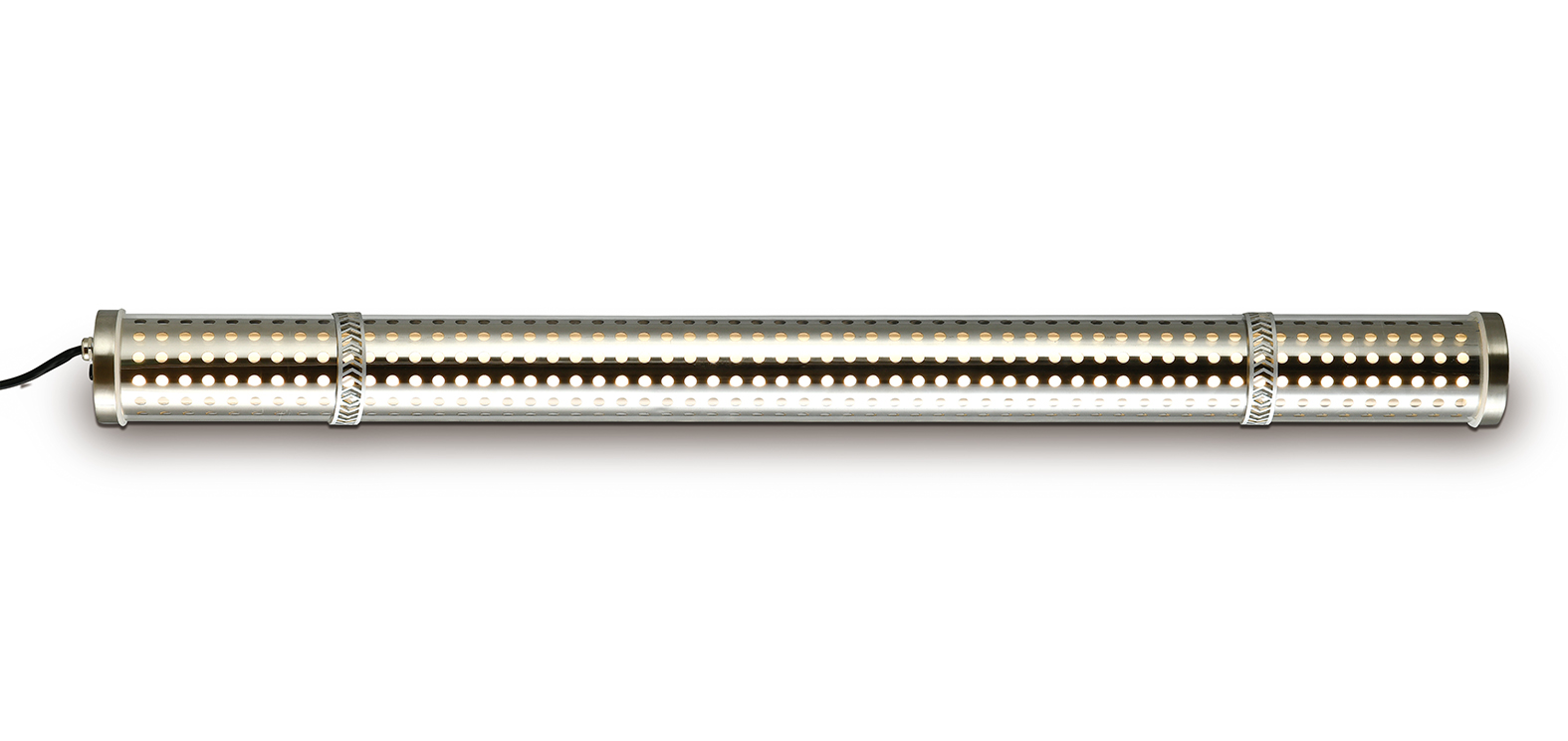

MANI Fashion Design Vapor Tight Tubular Fixture Waterproof IP65 IP67 IK10 LED Triproof Light for Residential, Hotel, Mall
Product Description - Features
Unique design
Low glare
IP65/IP67/IP68/IP69K rating
PC housing, IK10 impact protection
Anti-UV, Anti weak base and weak acid, 960℃ glow wire test
Gas-tight, corrosive-resistant, ammonia-resistant

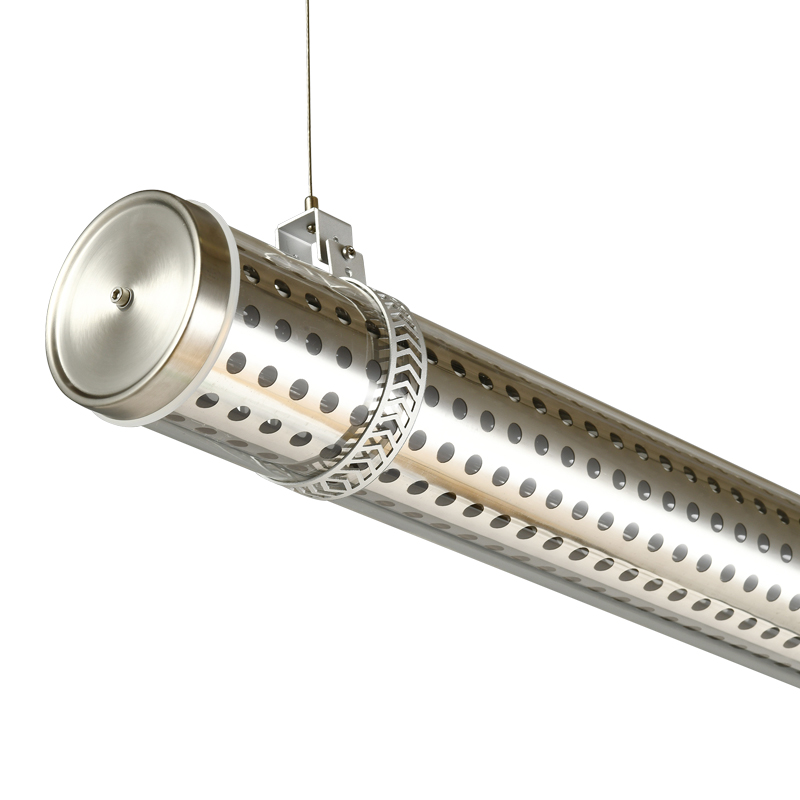

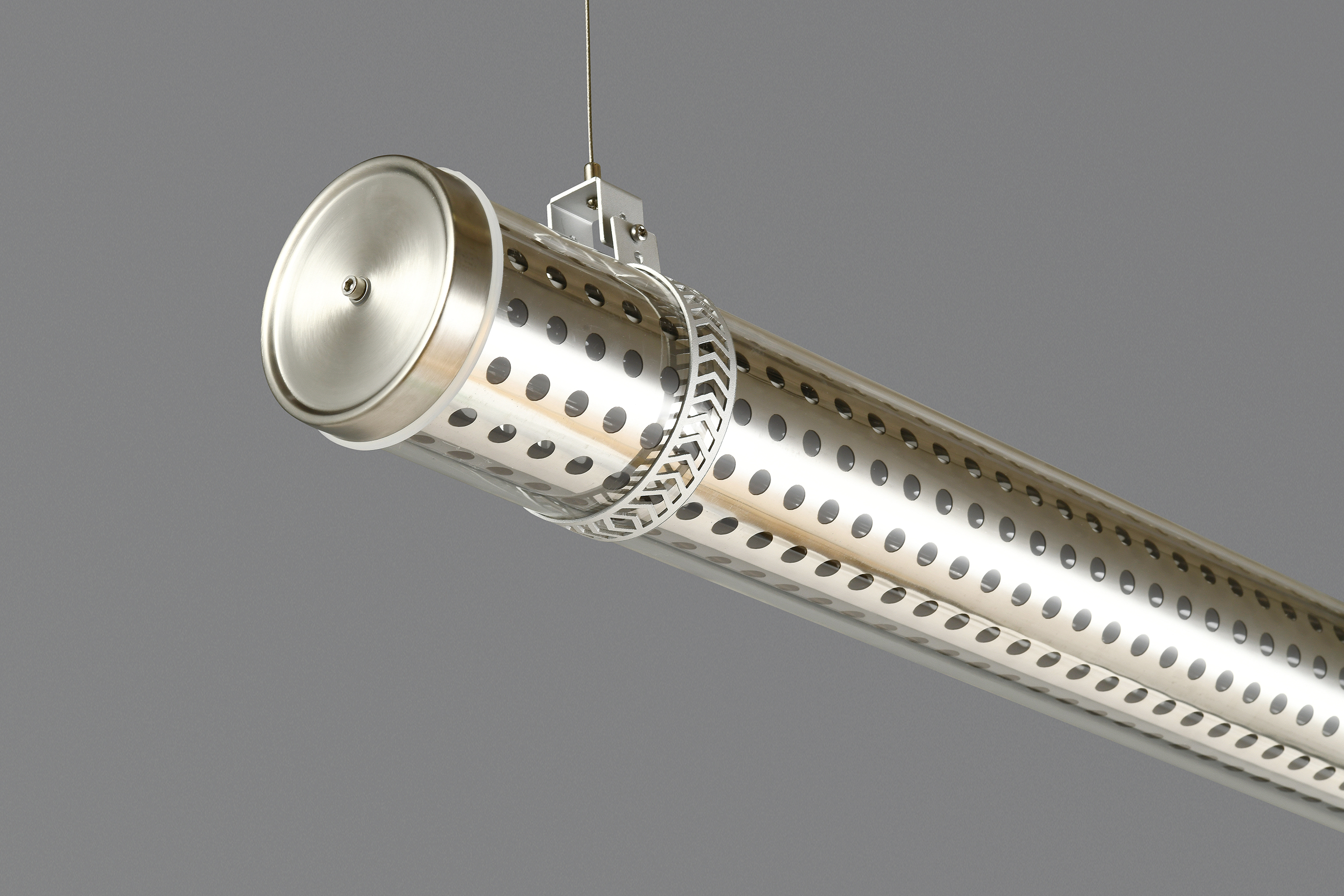

304/316 Stainless steel end caps, sealed with silicone gaskets, strong waterproof and rustproof
Built-in breather to avoid the condensation of water vapour on inner surface of the tube
Beam angle 120°
CRI > 80
Quick start instant 100% luminous flux

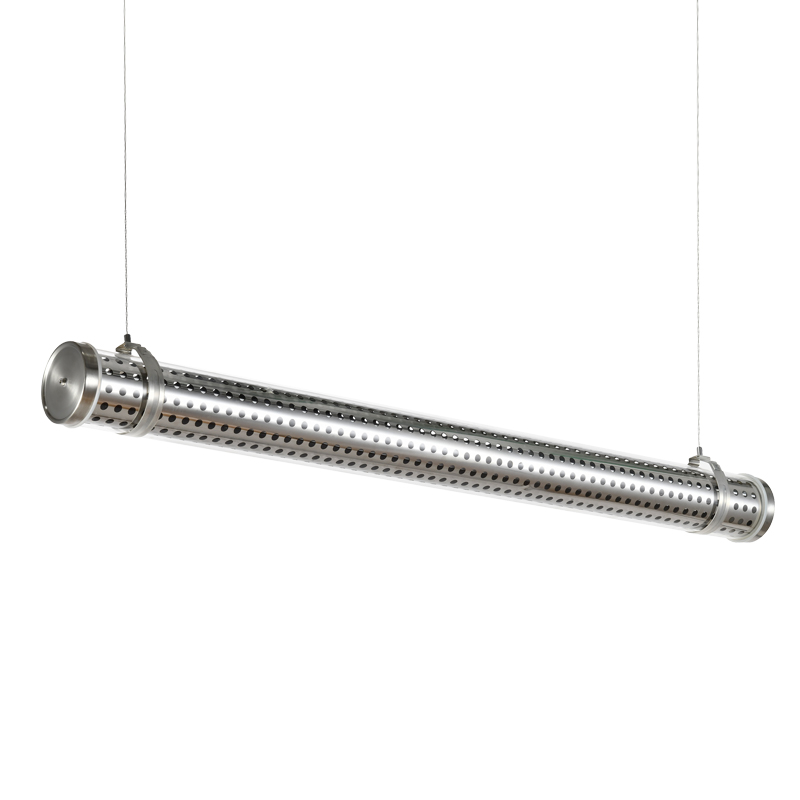

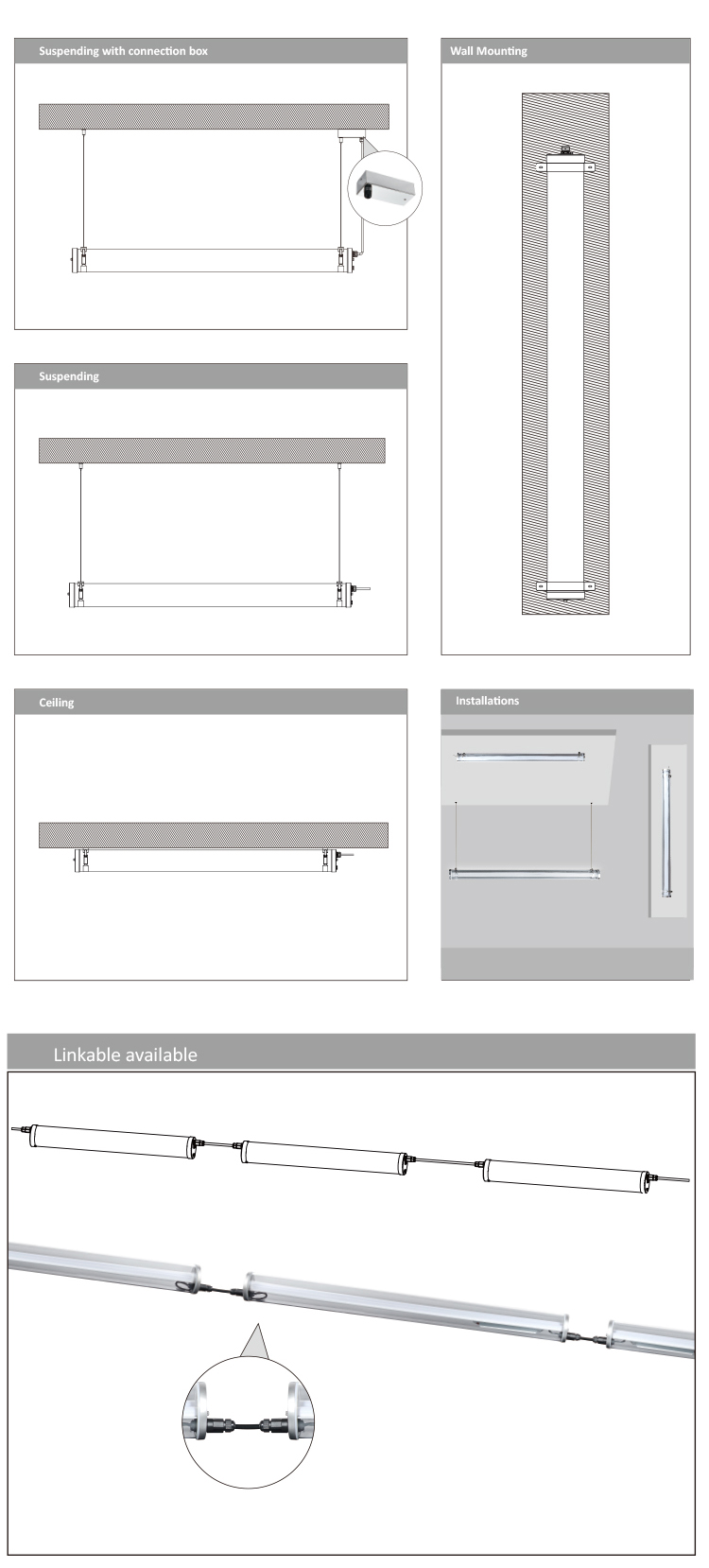

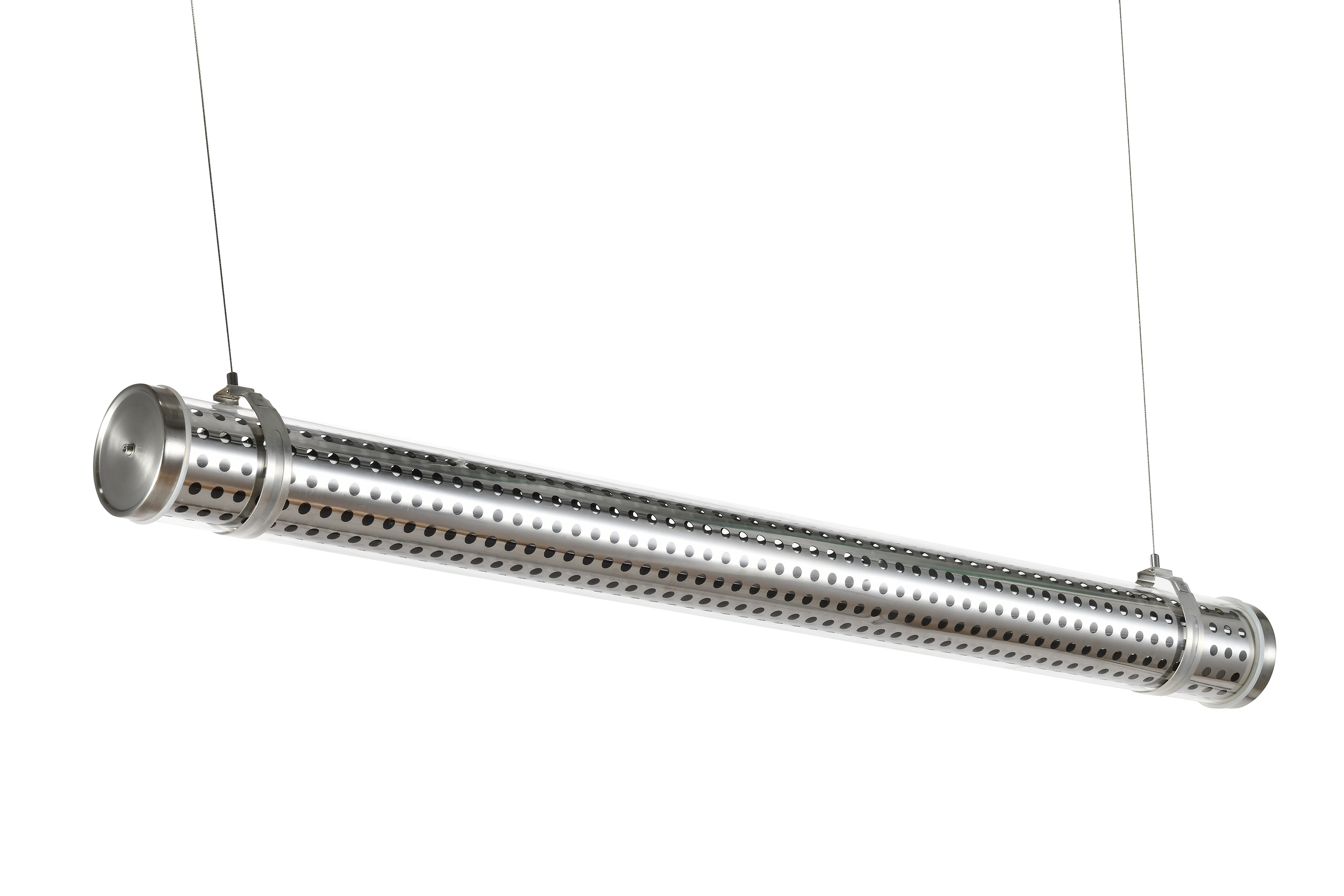

Suspended and ceiling mounted for convenient installation and maintenance

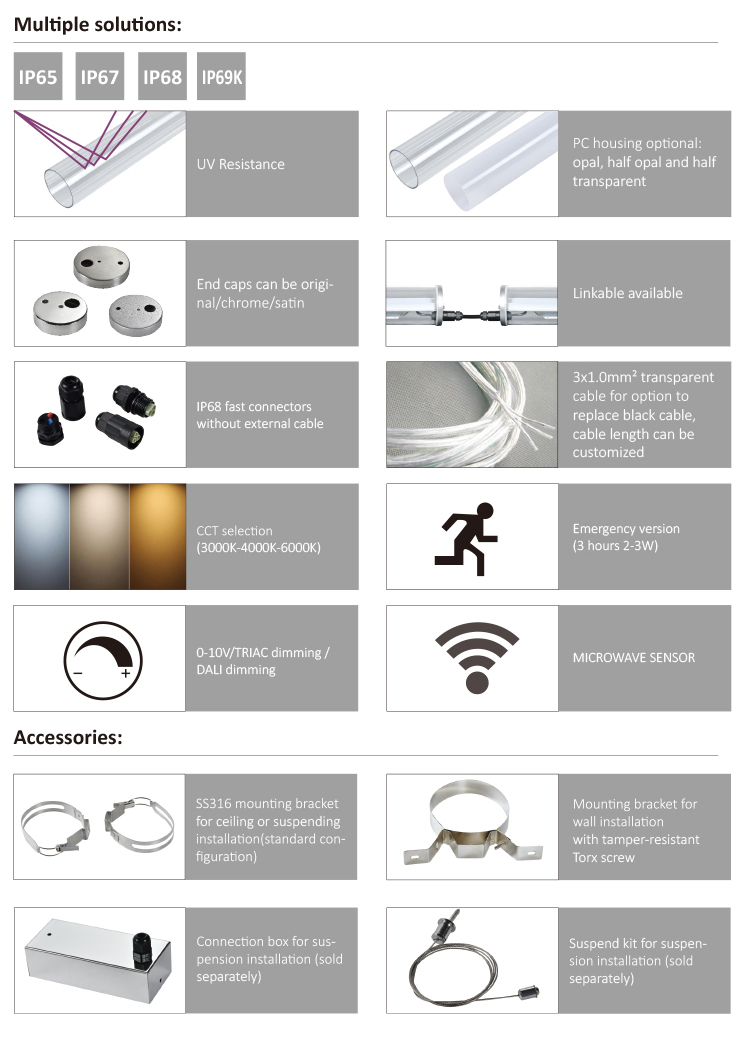

Linkable options with quick connection

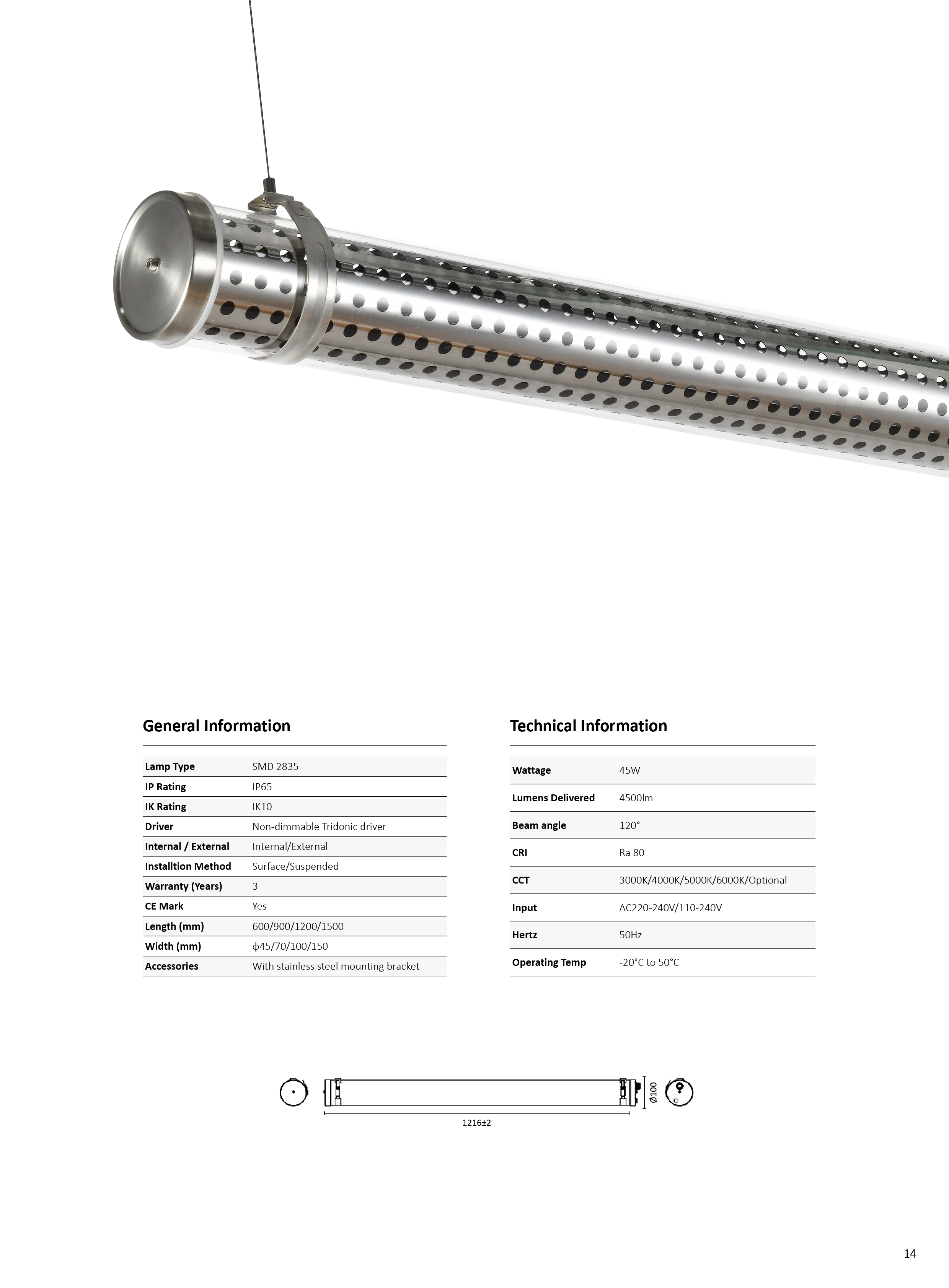

Specifications & Technical Data
General Information
Lamp Type SMD 2835
IP Rating IP65
IK Rating IK10
Driver Non-dimmable Tridonic driver
Internal/External Internal/External
Installation Method Surface/Suspended
Warranty (Years) 3-5
CE Mark Yes
Length (mm) 600 / 900 / 1200 / 1500
Width (mm) Ø45 / 70 / 100 / 150

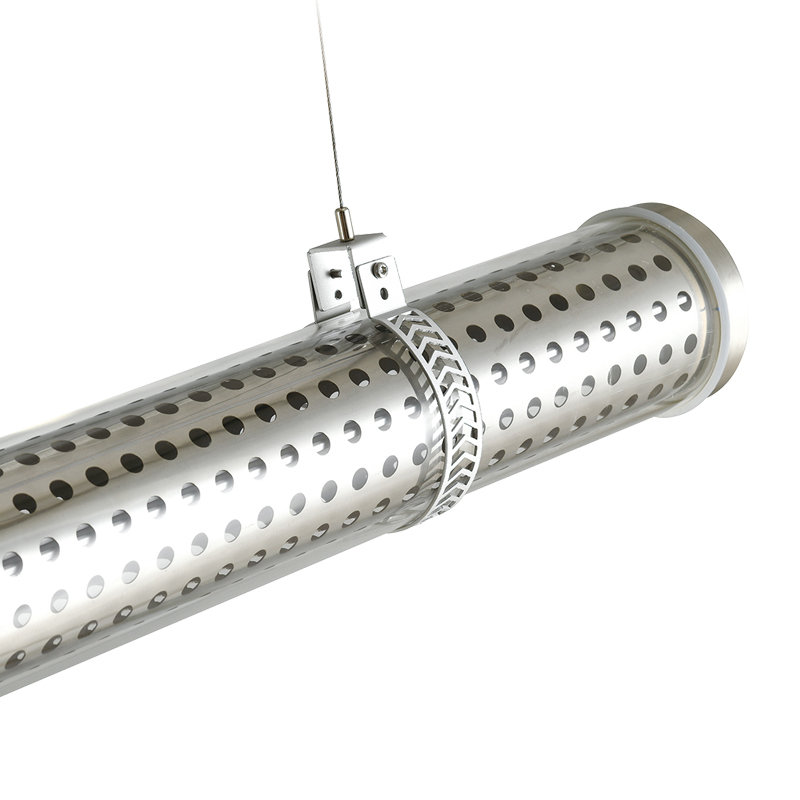

Accessories With stainless steel mounting bracket
Technical Information
Wattage 45W
Lumens Delivered 4500lm
Beam Angle 120°
CRI Ra80
CCT 3000K / 4000K / 5000K / 6000K / Optional
Input AC220-240V / 110-240V
Hertz 50Hz
Operating Temp -20℃ to 50℃
Product Gallery
Frequently Asked Questions
Q1: What IP ratings are available for the tubular triproof light?
A: This fixture supports premium environmental protection grades ranging from IP65, IP67, up to IP69K, ensuring high resistance against water ingress, high-pressure jets, and moisture.
Q2: How does the built-in breather help the light fixture?
A: The integrated breather balances the internal and external pressure of the sealed tube, effectively preventing the condensation of water vapor on the inner surface.
Q3: Is the housing strong enough to withstand physical impacts?
A: Yes, it is constructed with a high-strength PC housing that achieves an IK10 impact rating, protecting the light from external physical shocks.
Q4: What mounting and installation options are supported?
A: It can be easily mounted on surfaces (ceilings) or suspended using the included stainless steel mounting brackets. It also features linkable configurations for seamless series connection.
Q5: What are the material specifications of the end caps?
A: The end caps are made of 304 or 316-grade stainless steel and sealed securely with silicone gaskets, providing exceptional rust prevention and watertight seal integrity.
Q6: What is the warranty period for this LED triproof light?
A: We provide a comprehensive warranty of 3 to 5 years, powered by a high-efficiency, non-dimmable Tridonic driver.
