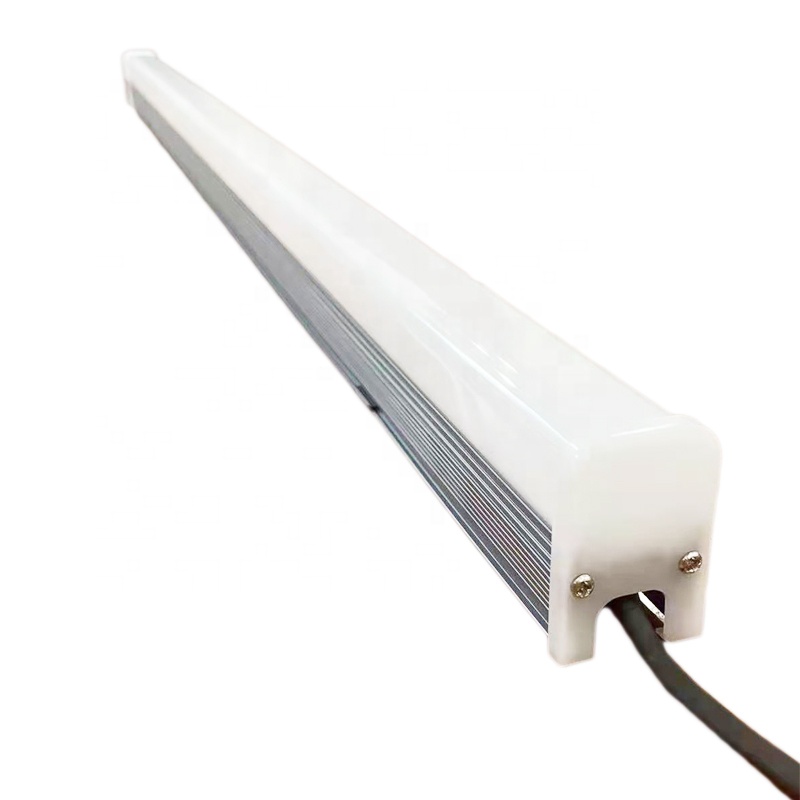

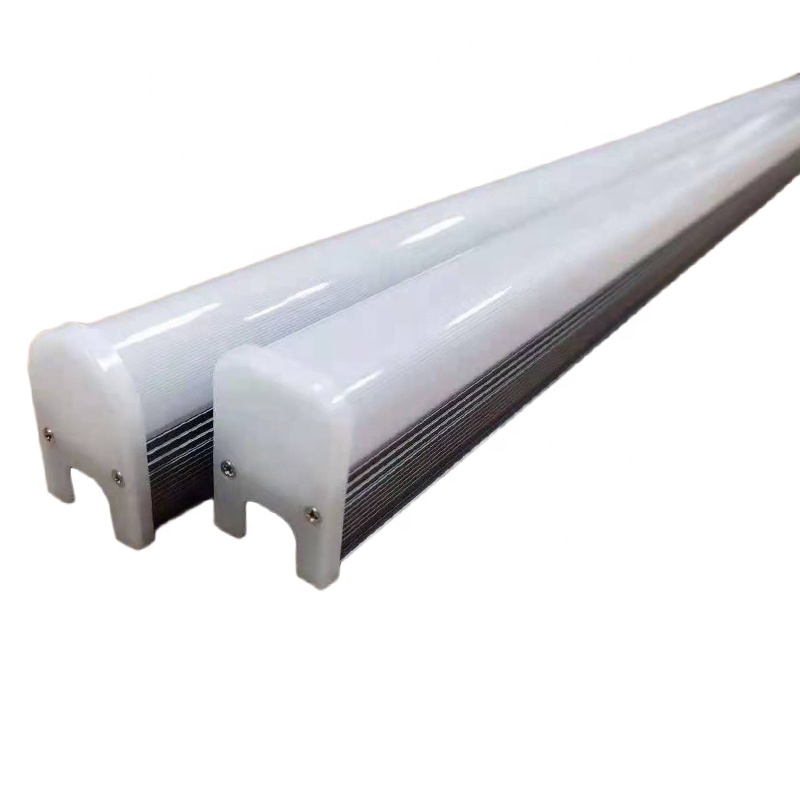

Outdoor IP67 High Lumen Architectural Lighting 12w 15w Single Color / Dmx512 Rgb Led Wall Washer Light for Building

Product Description

Outdoor IP67 High Lumen Architectural Lighting 12w 15w Single Color / Dmx512 Rgb Led Wall Washer Light for Building
Outdoor IP67 High Lumen architectural lighting 12w 15w single color / dmx512 rgb led wall washer light for building
Product Specification

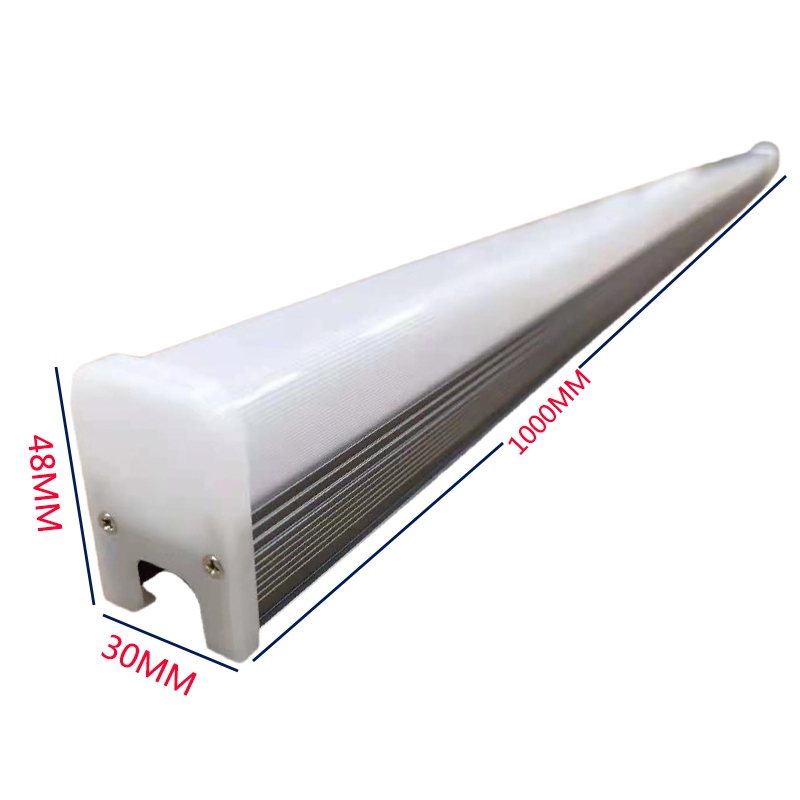

  • Size: L1000*W30*H48mm
  • Voltage: DC24V
  • Power: 12W/15W
  • Color Temperature: 2200K-6500K
  • Lamp Beads: 2835/5050 model
  • Chip: American Bridgelux/Taiwan Epistar/OSRAM
  • Length: Conventional 1 meter, 0.5 meter
  • Material: Die-cast aluminum housing, imported PC cover, acrylic lens
  • Waterproof: Fully glued waterproof, IP66
  • Color Options: White/yellow/warm white/red/green/blue/purple/common external control with ucs1903ic /external control with dmx512ic / external control RGBW with dmx512IC

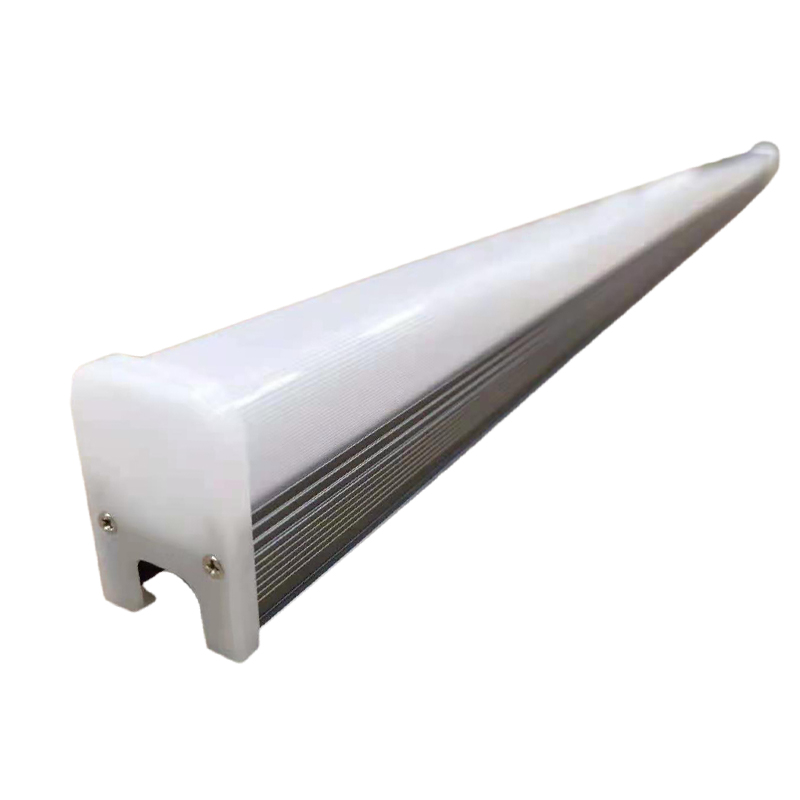

Wall Washer Specifications
Specification Detail Parameter Value
Model Name CP-L3048
IC Chip UCS1903/DMX512/ Single color
Led Chip Epister smd5050/smd2835 led chip
Led Qty 48LEDS
Voltage AC24V / DC24V
Watt 15WATT
Cover Transparent / translucent / milky white
Warranty 3 Years
Certification CE ROHS

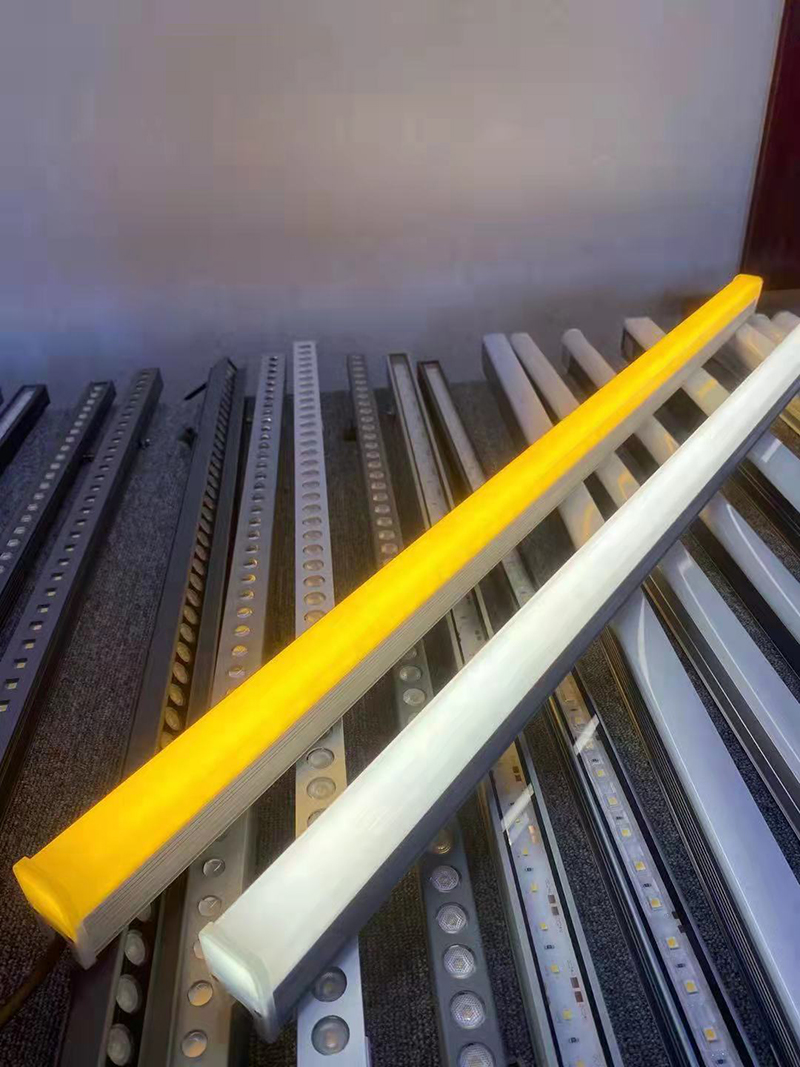

Product detail image 1

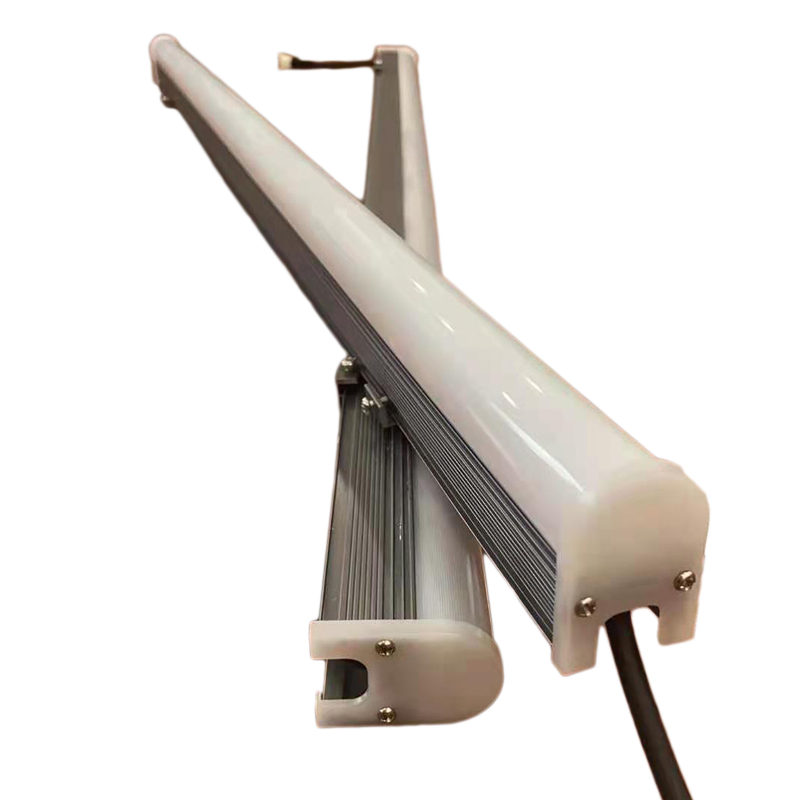

Product detail image 2

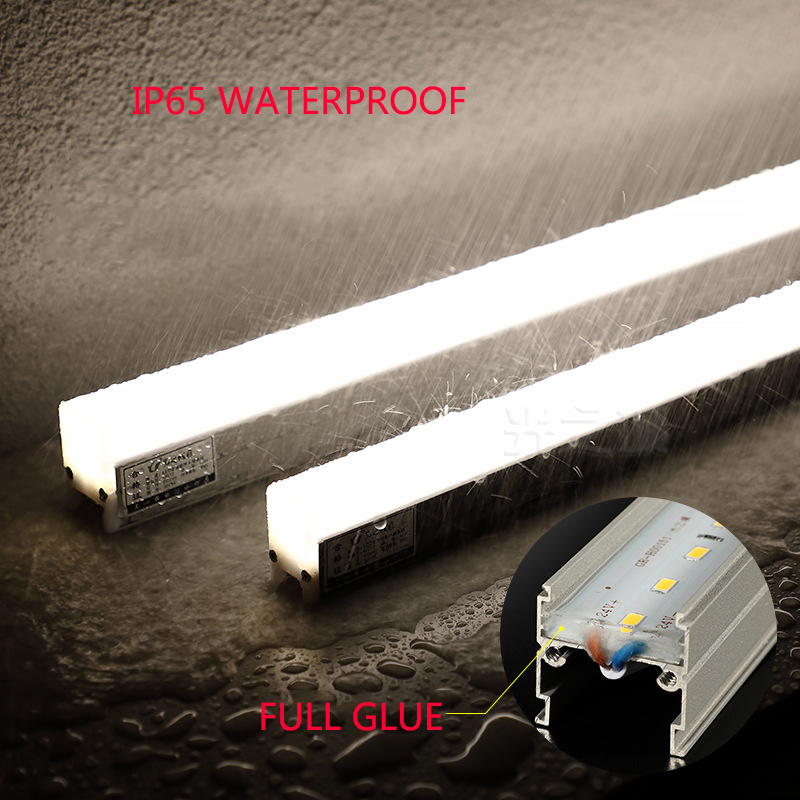

Product detail image 3

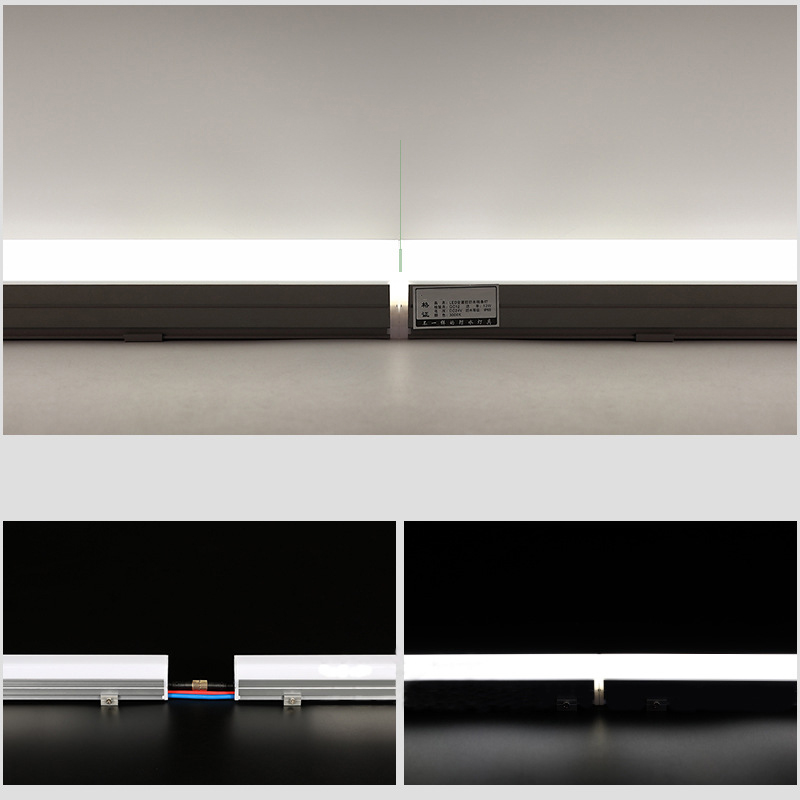

Product detail image 4

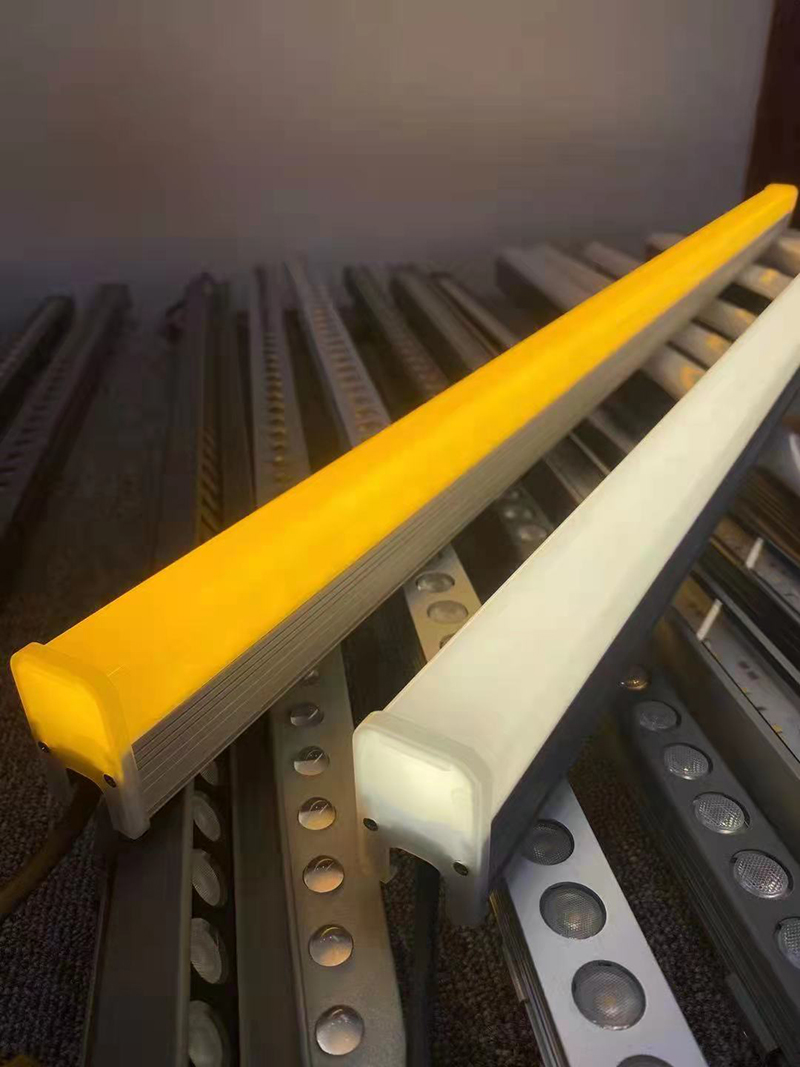

Product detail image 5

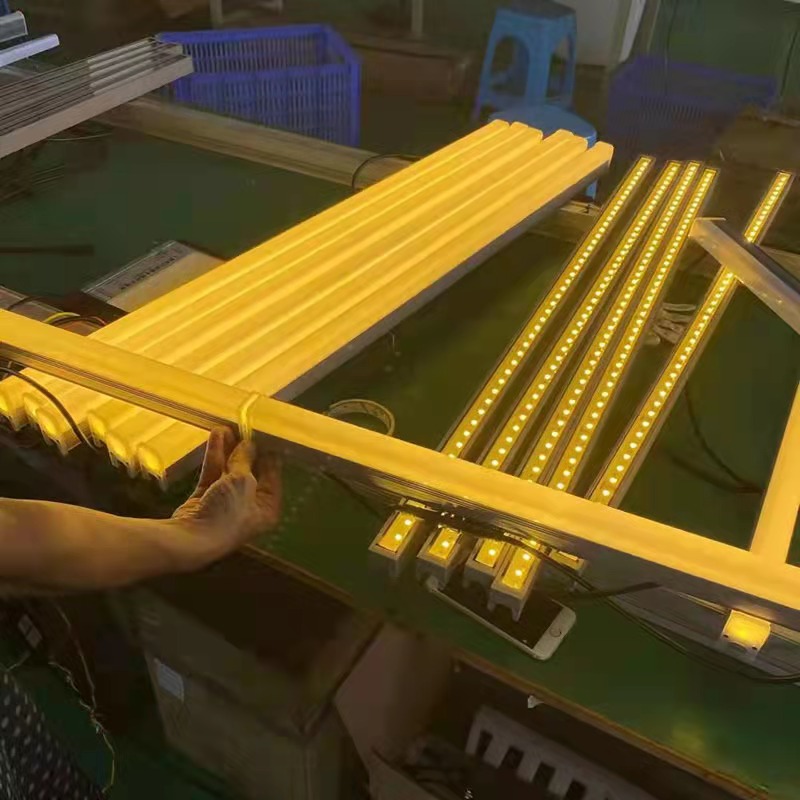

Product detail image 6
Product detail image 7
Connection & Installation Steps
1
According to the required installation method, the lamp is placed in the designated position (ensure that there is sufficient distance between the lamps).
2
According to the positioning of the mounting hole, fix directly to the mounting surface with screws (as shown in the installation diagram).
3
Check that the lamp is not loose, then you can connect the power.
4
When connecting external power cables, waterproof measures must be taken accordingly.
5
The total power of the connected lamps cannot exceed 80% of the maximum input line load.
6
The power supply main line diameter should be able to meet the total load maximum current size.
7
Please find a professional electrician to install the wiring, and wire according to the wiring diagram.

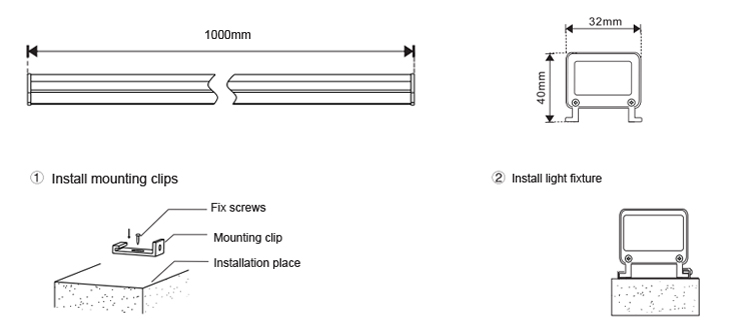

Installation Connection Diagram 1

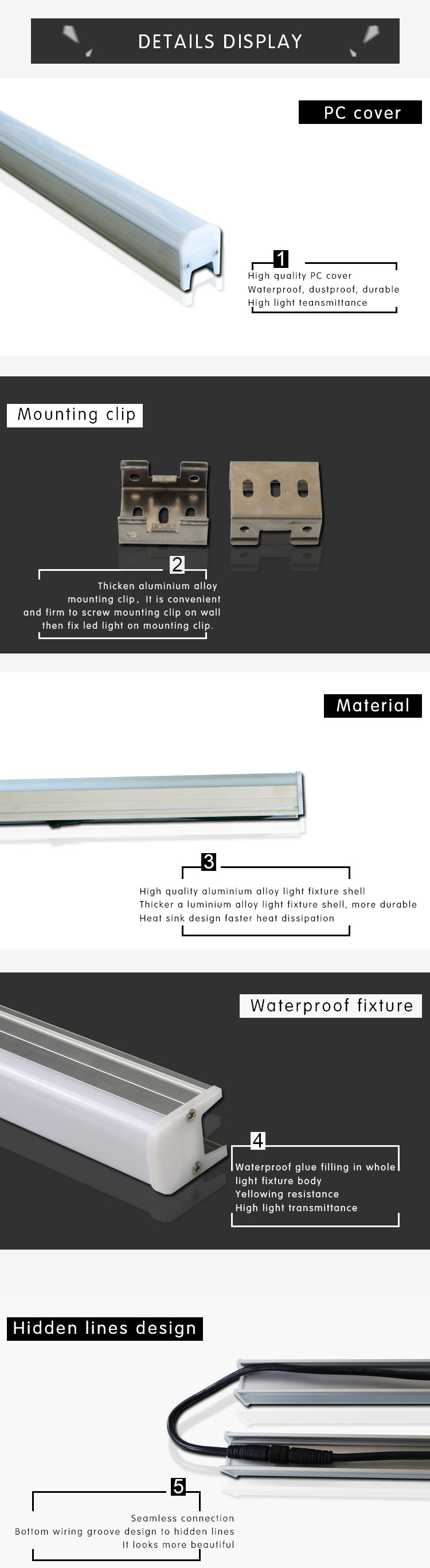

Installation Connection Diagram 2
Applications

Applicable to the lighting of buildings facades, bridges, gardens, urban landscapes and other places.

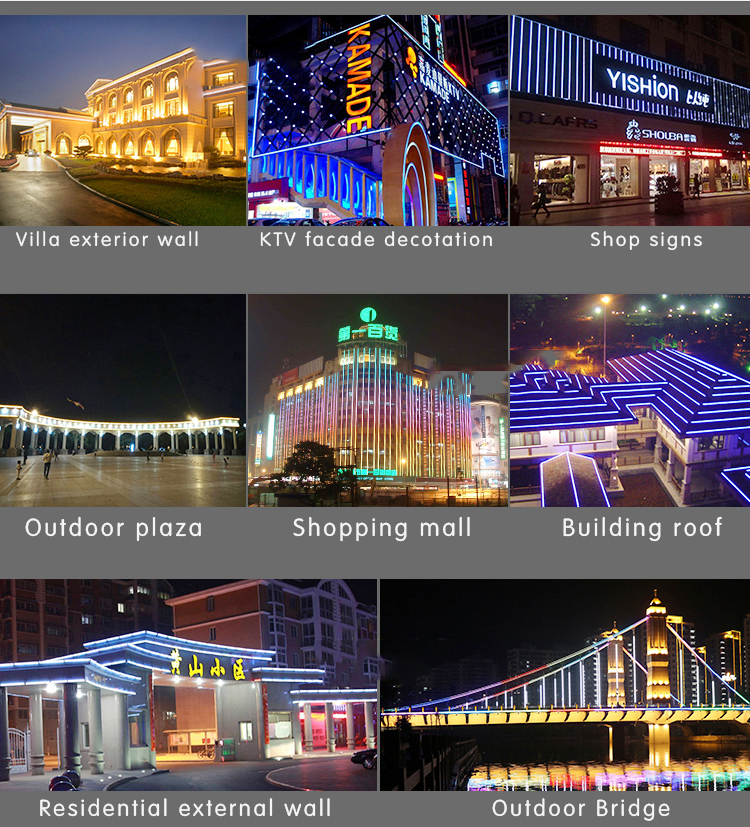

Outdoor Application Case
Important Notice
  • If the lamp fails to work properly, check if the line is correctly connected.
  • Please disconnect the power before installing or disassembling.
  • Please use as normal installation parameters require.
  • If any damage is found, please seek professional maintenance service.
  • Do not disassemble the product without authorization.
Related Products
Related Lighting Products Display
Why Choose Us
  • We were one of the first companies to use SMD technology for LED neon lighting products globally.
  • We successfully solved the heat-dissipation problem, giving our products an absolute advantage in the market.
  • Our factory offers over 1,000 different LED neon models, including SMD2835 and SMD5050 options, establishing one of the most complete series globally.
  • Every LED product undergoes strict testing before delivery. We perform 100% quality testing rather than casual batch inspections.
  • In case of verified product quality issues, our factory promises to replace the item for free.
Factory production and quality control display
Frequently Asked Questions

Q1. Can I have a sample order for the Wall Washer light?

A: Yes, we welcome sample orders to test and check the product quality. Mixed samples are acceptable.

Q2. What is the lead time for Wall Washer light orders?

A: Samples of the Wall Washer light require 3-5 days. Mass production requires 1-2 weeks for order quantities exceeding 1,000 meters.

Q3. Do you have a MOQ limit for the Wall Washer light?

A: We support a low MOQ. A 50-piece order of the Wall Washer light for sample checking is available.

Q4. How do you ship the Wall Washer light and how long does it take to arrive?

A: We usually ship via DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. Do you offer a guarantee for the Wall Washer light?

A: Yes, we offer a 3-year warranty for our Wall Washer light products.

Q6. How do you deal with product failures?

A: First, our products are produced under a strict quality control system, maintaining a defective rate below 0.2%. Second, during the guarantee period, we will send replacement lights with new orders for small quantities. For defective batch products, we will repair and resend them, or coordinate a suitable solution based on the situation.
