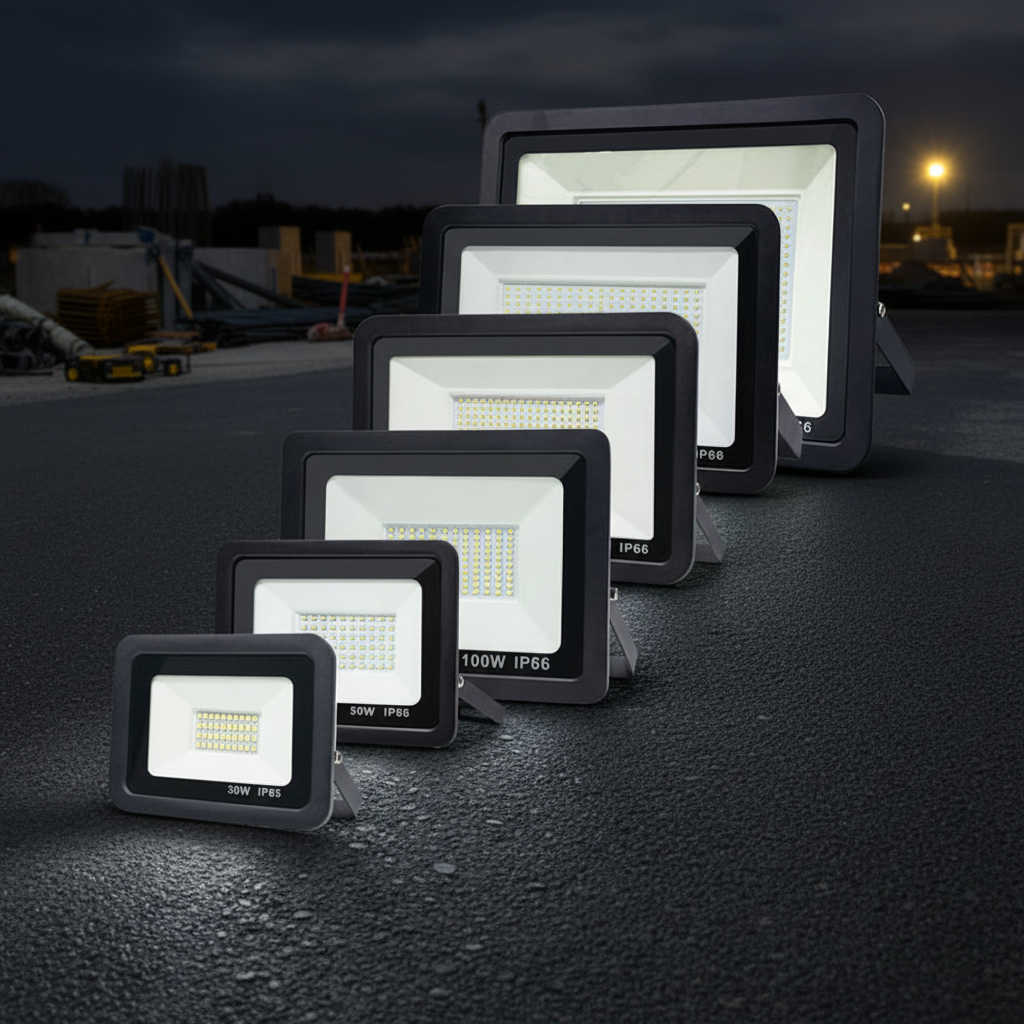

Energy Saving Floodlight Factory IP66 Waterproof Outdoor Projector Yard Garage 30w 50w 100w 150w 200w 300w Led Flood Light

Product Overview

Model	Rated Power	Luminous Flux	Product Size	Packing
SU-CB10T	10W	900-1000LM	L103W83H24mm	100PCS/CTN
SU-CB20T	20W	1800-2000LM	L120W95H26mm	50 PCS/CTN
SU-CB30T	30W	2700-3000LM	L159W121H26mm	30PCS/CTN

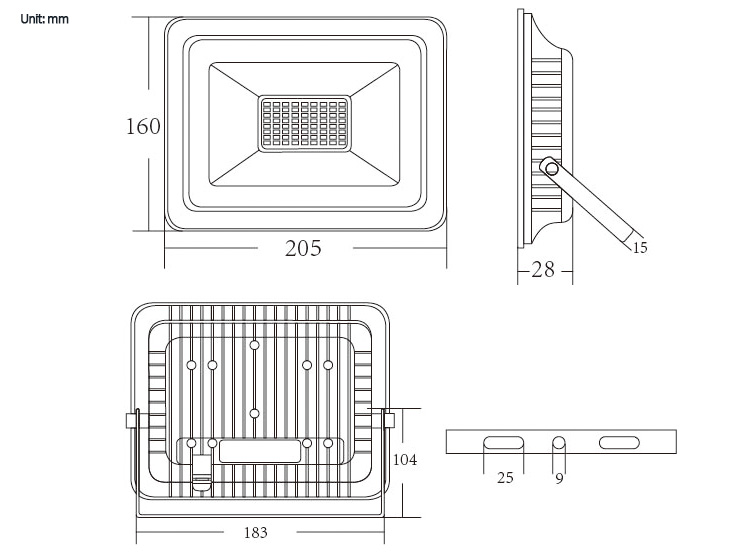

SU-CB50T	50W	4500-5000LM	L205W160H28mm	20PCS/CTN
SU-CB100T	100W	9000-10000LM	L270W210H30mm	10PCS/CTN
SU-CB150T	150W	13500-15000LM	L330W230H33mm	10PCS/CTN
SU-CB200T	200W	18000-20000LM	L380W280H35mm	4PCS/CTN

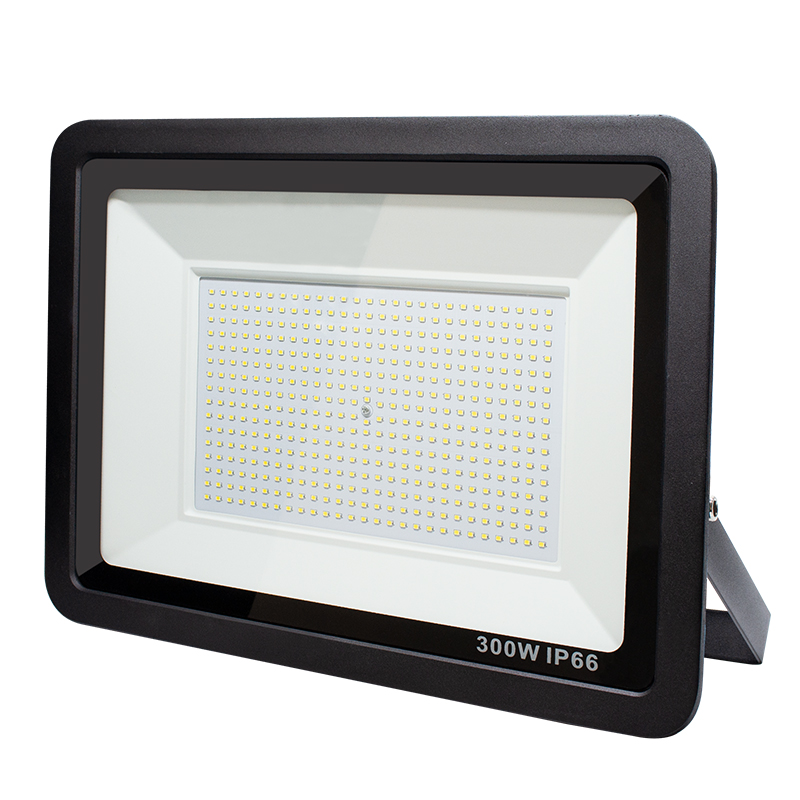

SU-CB300T	300W	27000-30000LM	L445W335H45mm	3PCS/CTN

Key Features

01

ORIGINAL FACTORY SALES

All lamps are self-produced and sold directly. Quality is strictly controlled, prices are highly competitive, and custom options (packages, stickers, custom specifications) are fully supported.

02

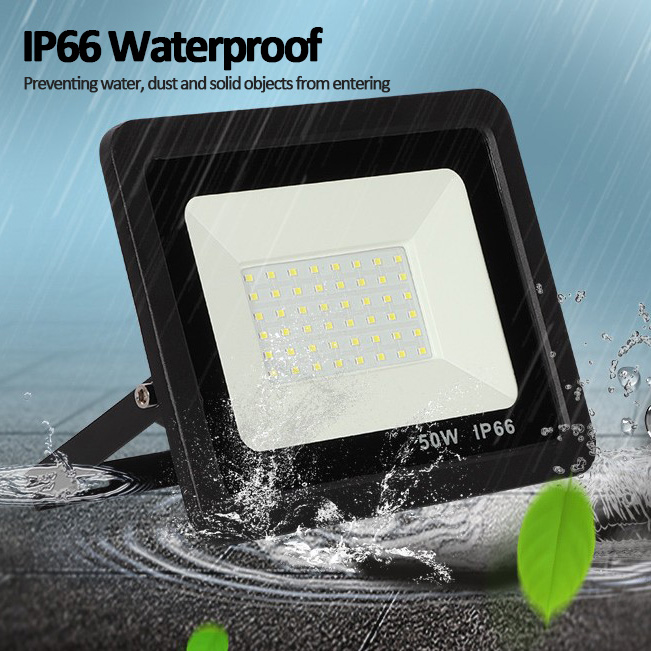

IP66 WATERPROOF

Designed to shield against water and dust ingress, making it highly applicable for both indoor and outdoor lighting environments.

03

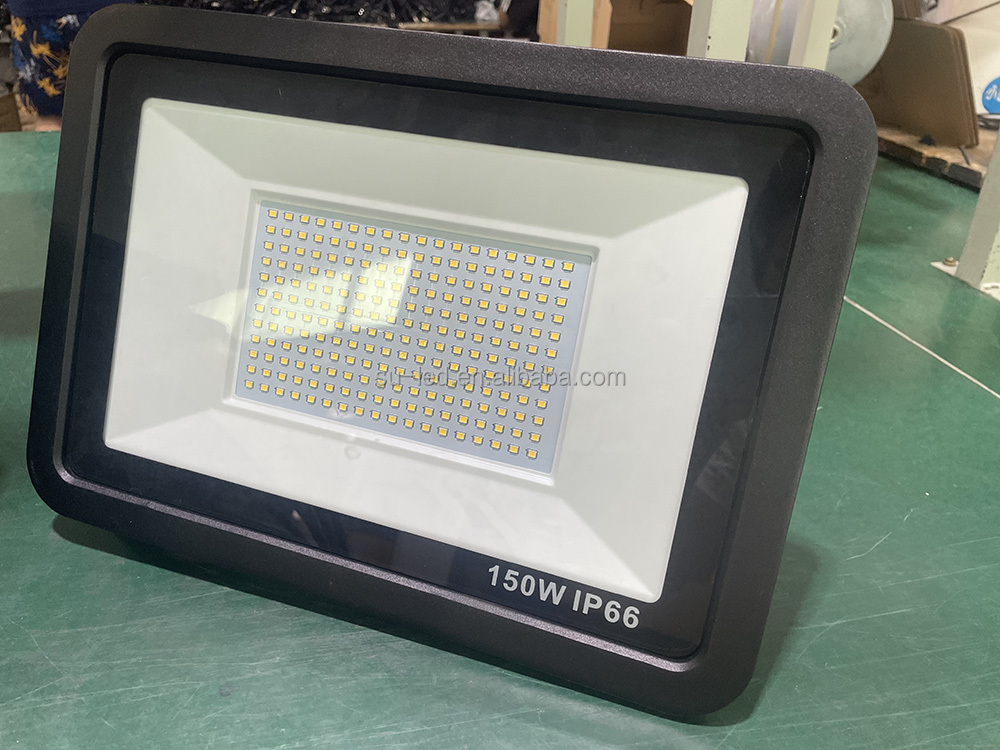

SUPER BRIGHT LED LIGHT SOURCE

Utilizes ultra-bright SMD2835 1W LED chips (72 pcs), delivering 90-100lm/W with low light decay.

04

INTEGRATED LED DRIVER

Equipped with a high-performance integrated IC driver on board. Offers stable performance, high light efficiency, and optimized costs.

05

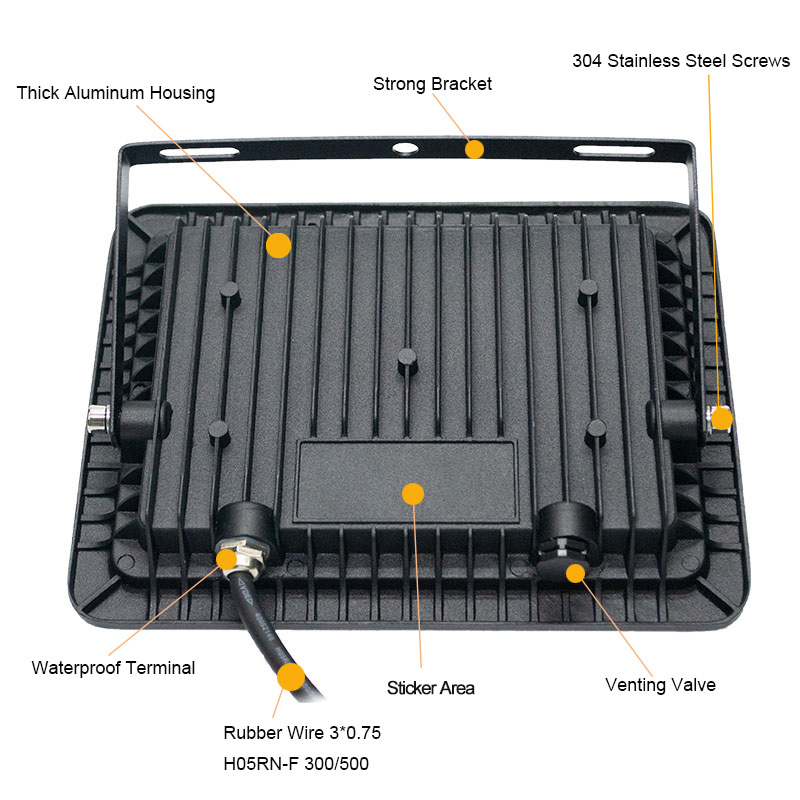

DIECAST ALUMINUM FRAME

Constructed with high-density die-cast aluminum housing coated with graphene for superior heat dissipation, oxidation protection, and durability compared to ABS alternatives.

06

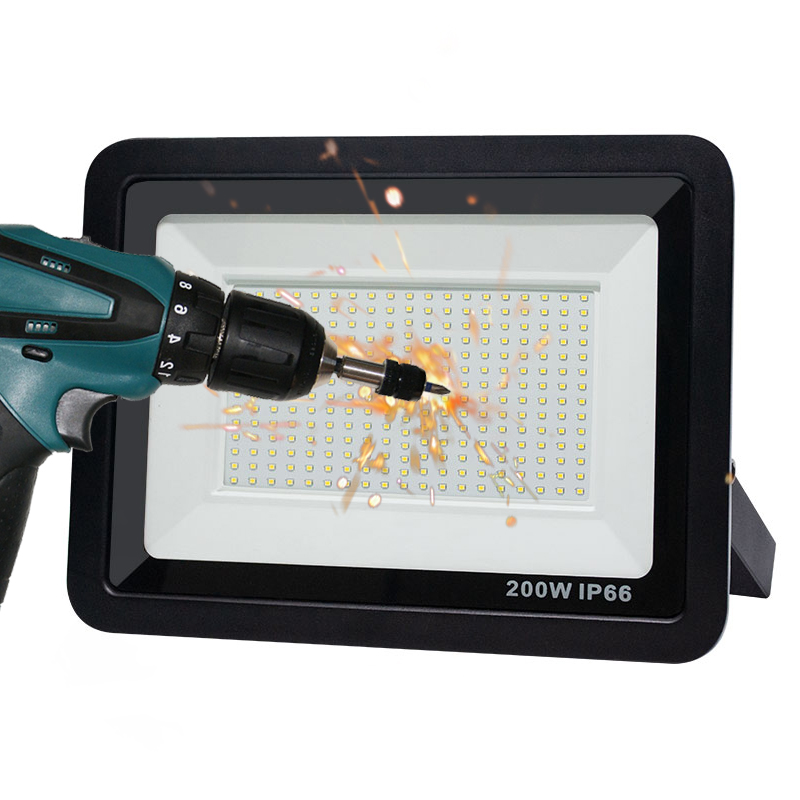

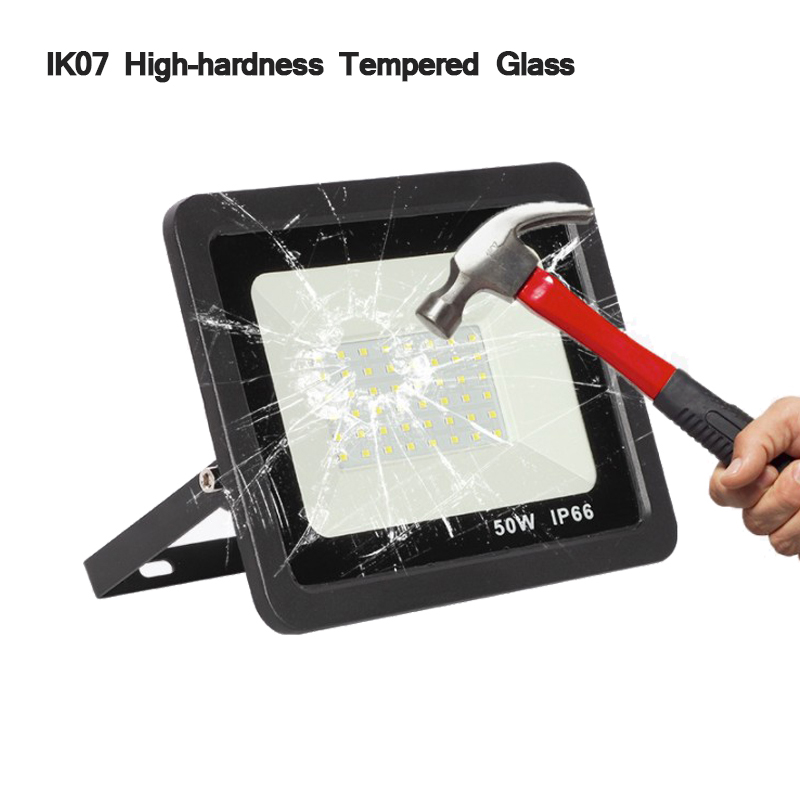

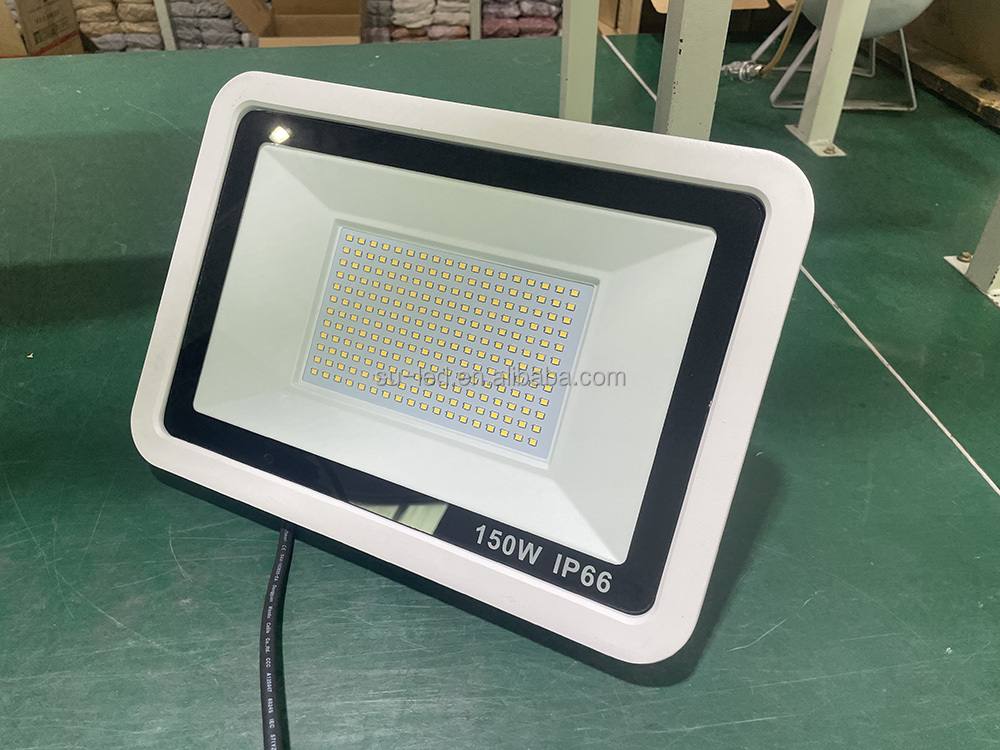

4MM TEMPERED GLASS

Reinforced with high-hardness 4mm tempered glass, providing excellent impact resistance.

07

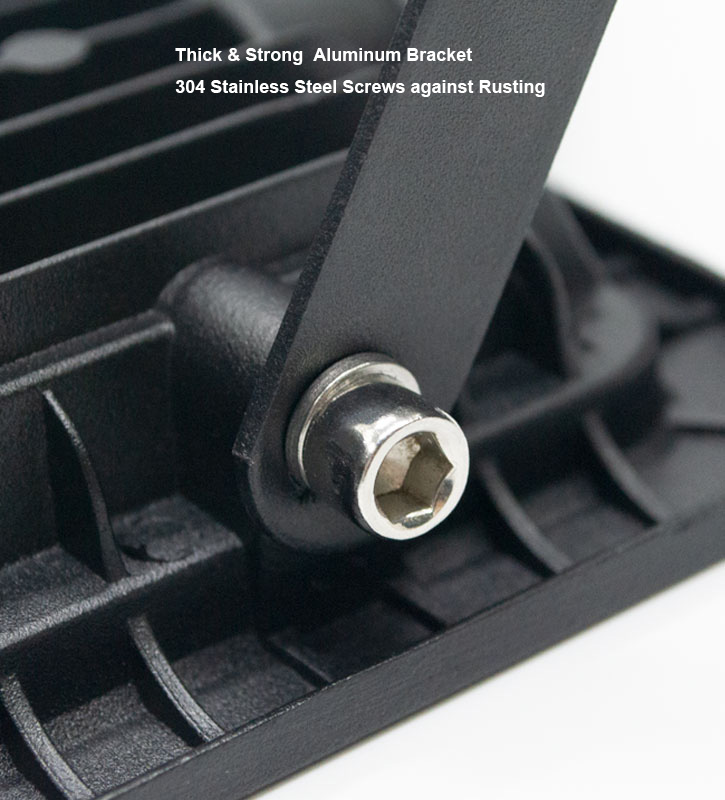

EASY INSTALLATION + MAINTENANCE FREE

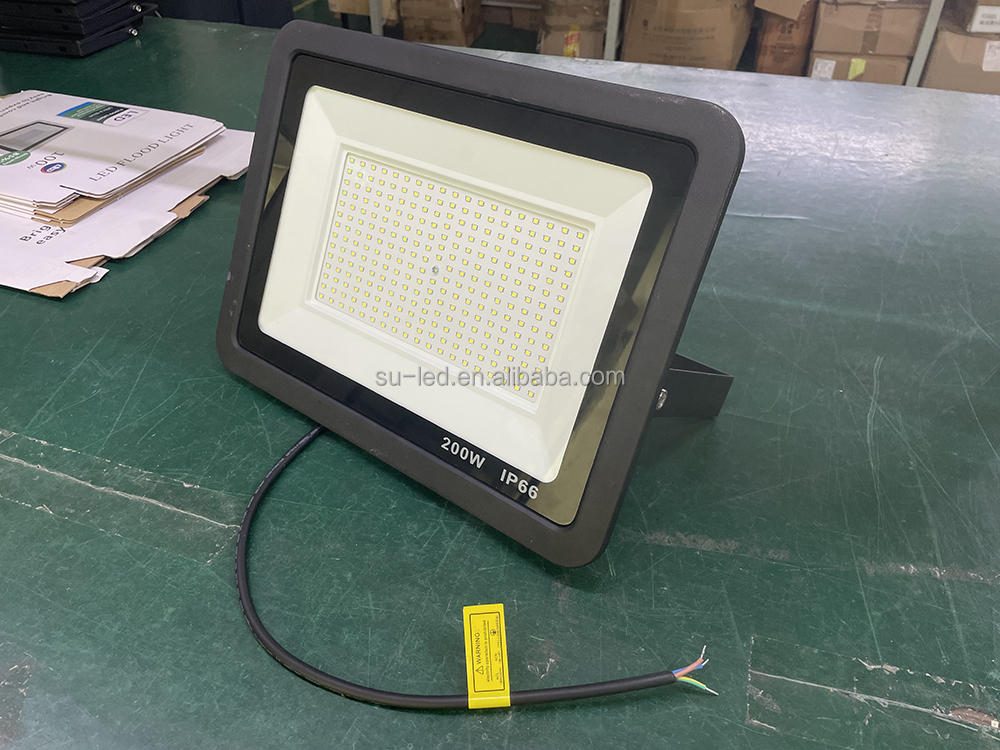

Supplied with heavy-duty brackets for effortless setup and hassle-free, long-term operation.

08

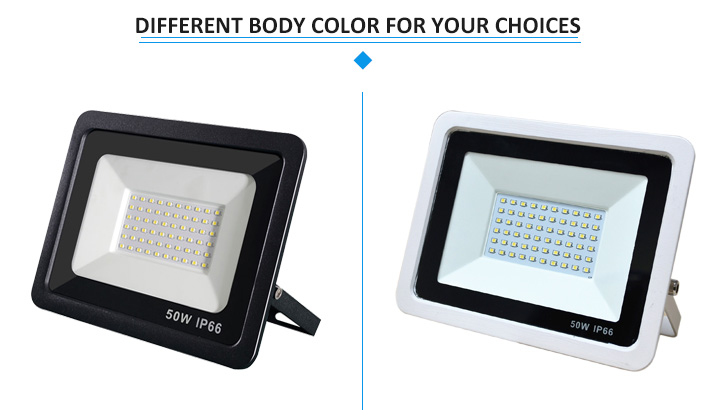

OPTIONAL BODY COLORS & APPLICATIONS

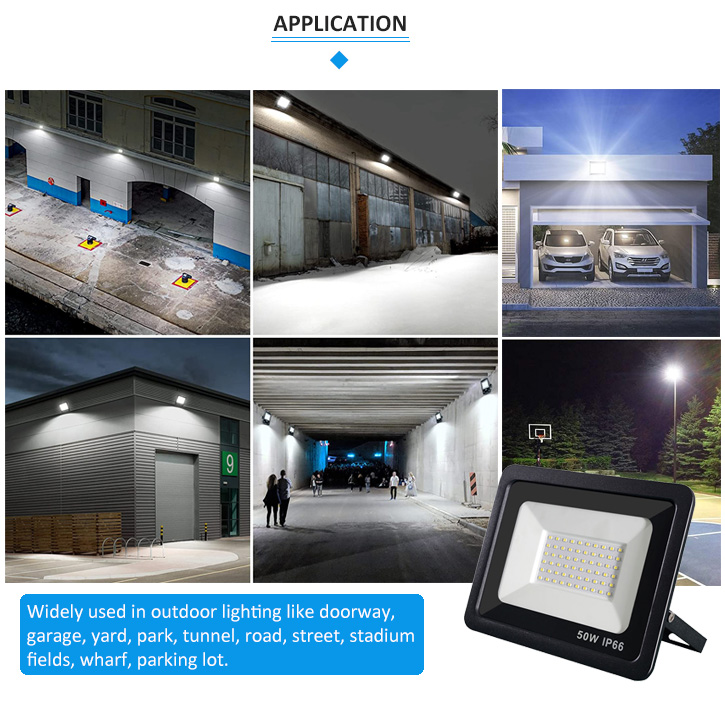

Available in black or white finishes. Perfect for yards, garages, gardens, pathways, walkways, corridors, parks, and sports fields.

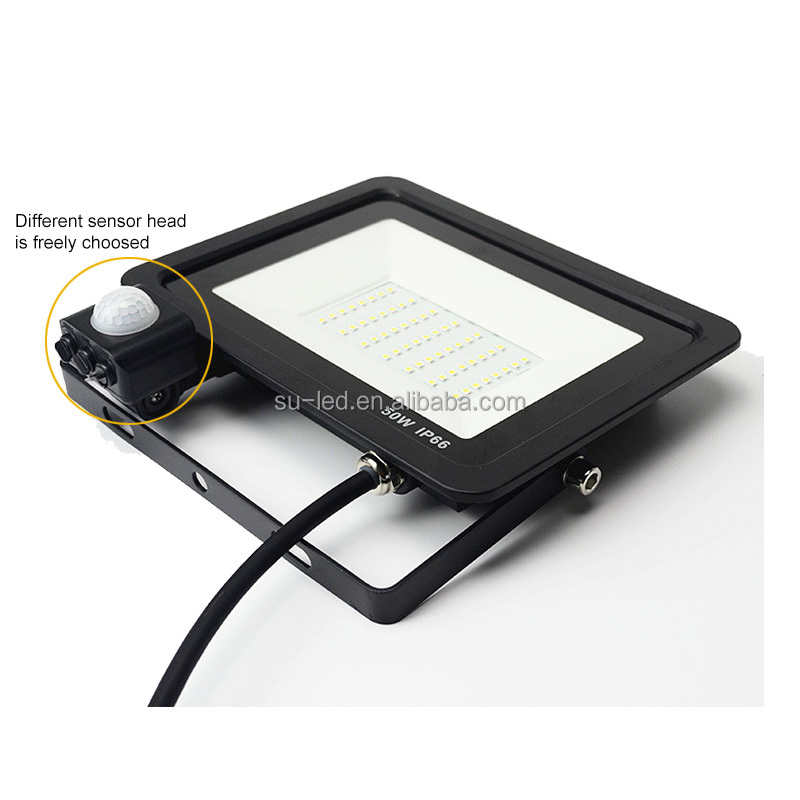

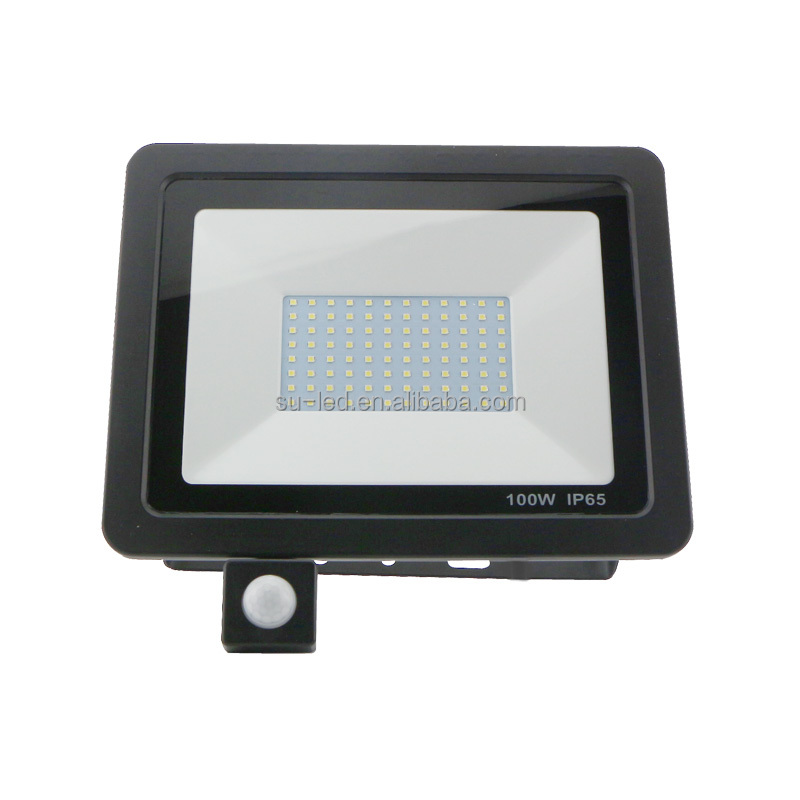

Option PIR Sensor Security Outdoor Lighting available:

Specification Details

Product	Outdoor Flood Light LEDs
Model	SU-CB30T
Rated Power	30W

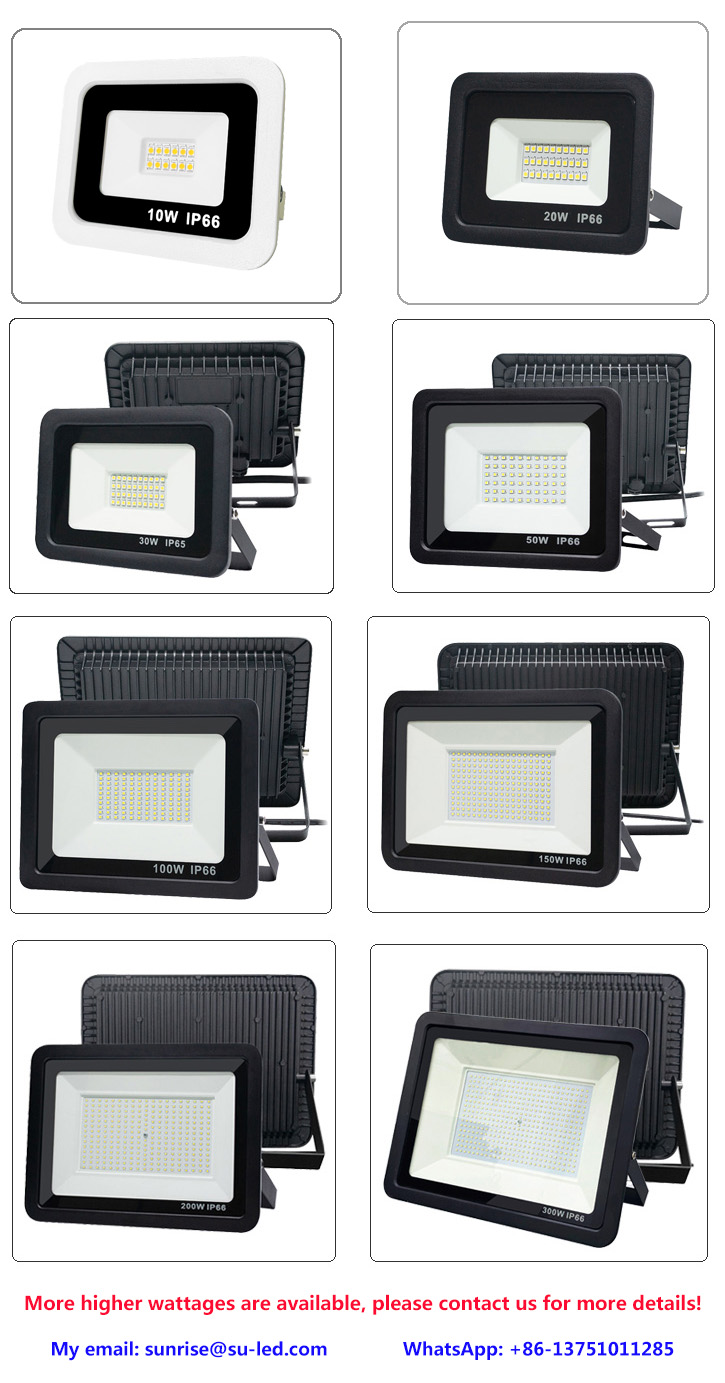

Optional Wattages	10W, 20W, 30W, 50W, 100W, 150W, 200W, 300W
Product Size	L159W121H26mm
Packing	20PCS/CTN
Input Voltage	AC100-130V / 220-240V, 50/60Hz
Light Source	Super bright SMD 2835 LEDs
Driver Mode	Linear integrated driver
Lumen Flux	85-90lm/W

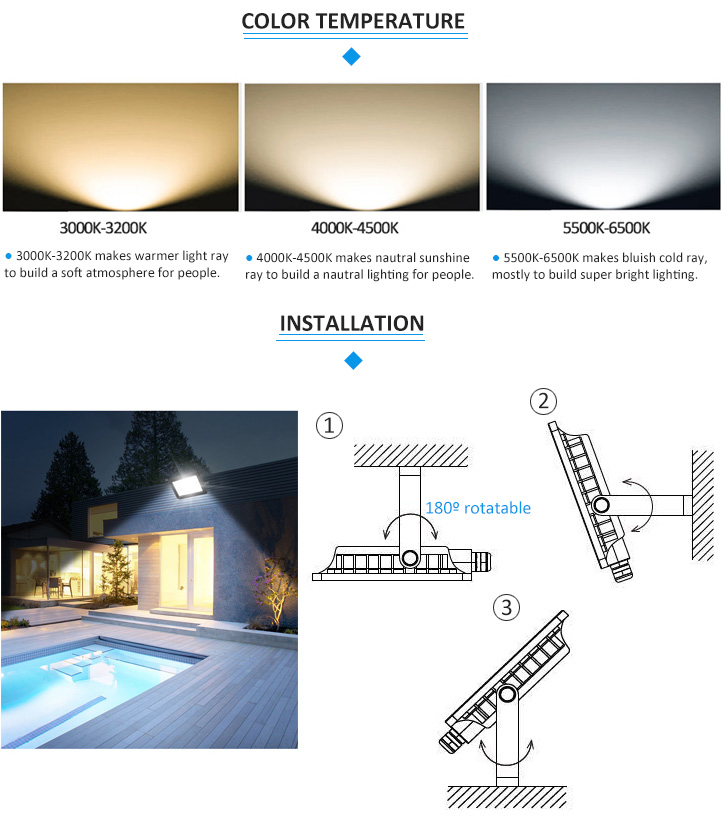

Color Temperature	Warm White 3000-3200K, Natural White 4000-4500K, Pure White 6000-6500K, Red, green, blue, yellow
Material	Die-casting aluminum + tempered glass
Surging Protection	2KV-4KV
Cable	3*0.75mm² cable 50cm (customizable)
Anti-shock Level	IK07
Waterproof Protection	IP66 waterproof
SDCM	<5
THD	<15%
Housing Color	Black, White
CRI	>70Ra or 80Ra
PF	>0.9
Beam Angle	120°
Working Temperature	-20 ~ +50°C
Warranty	3 Years
Certification	CE ROHS

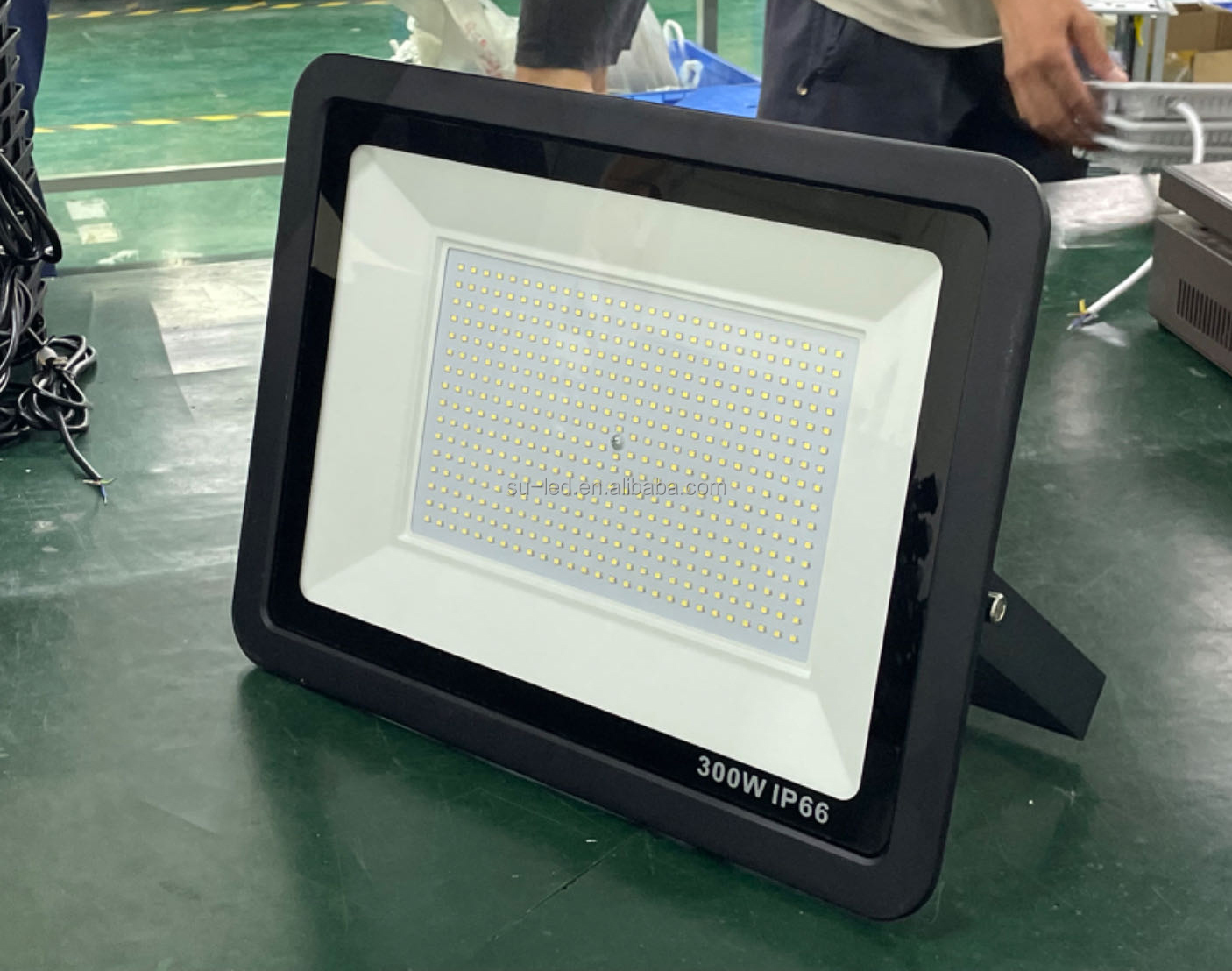

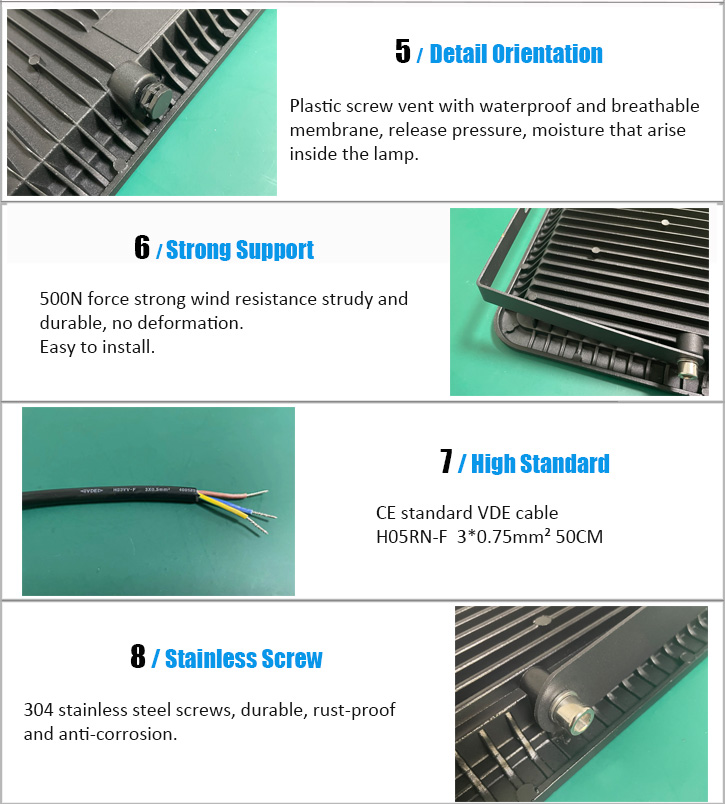

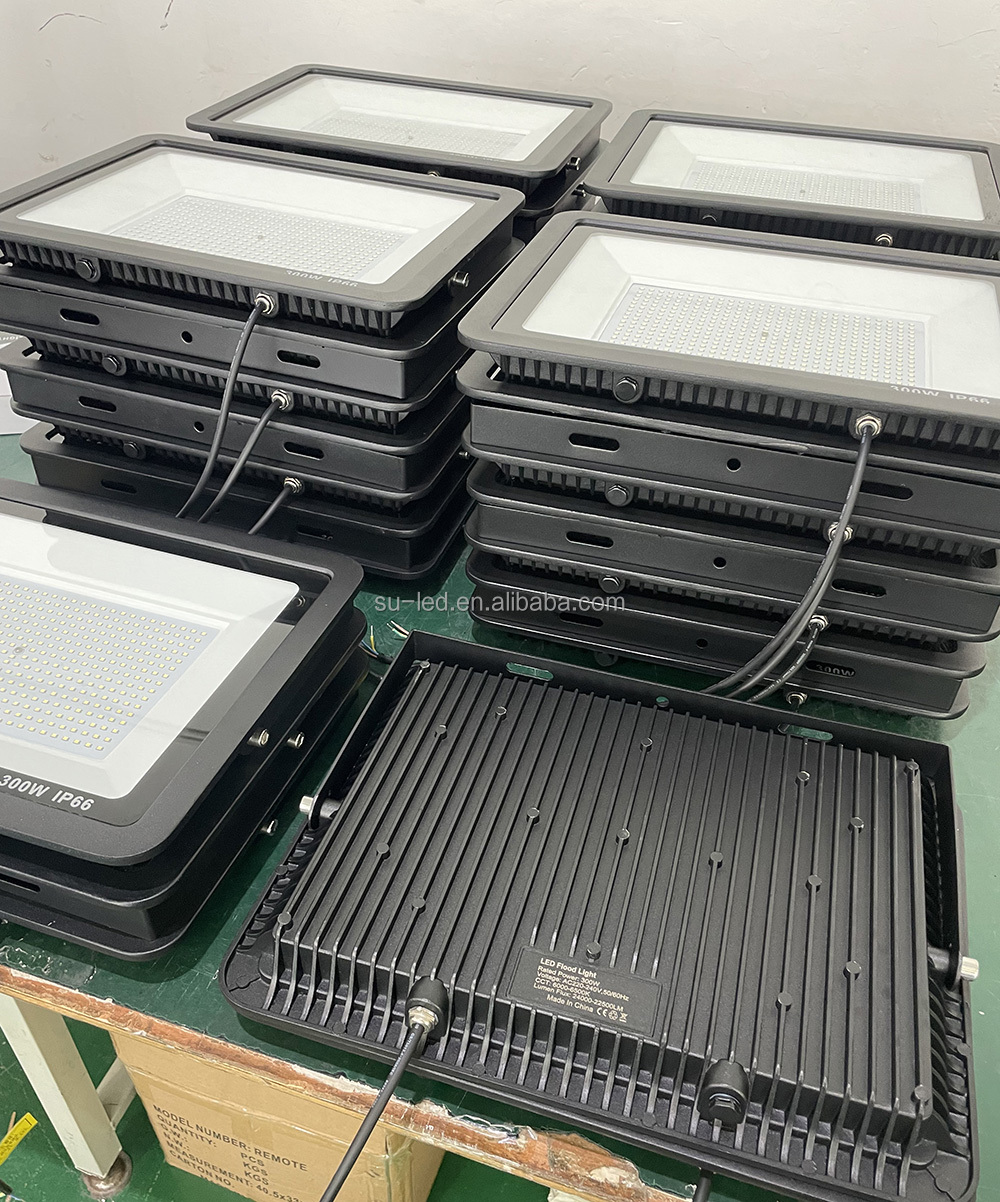

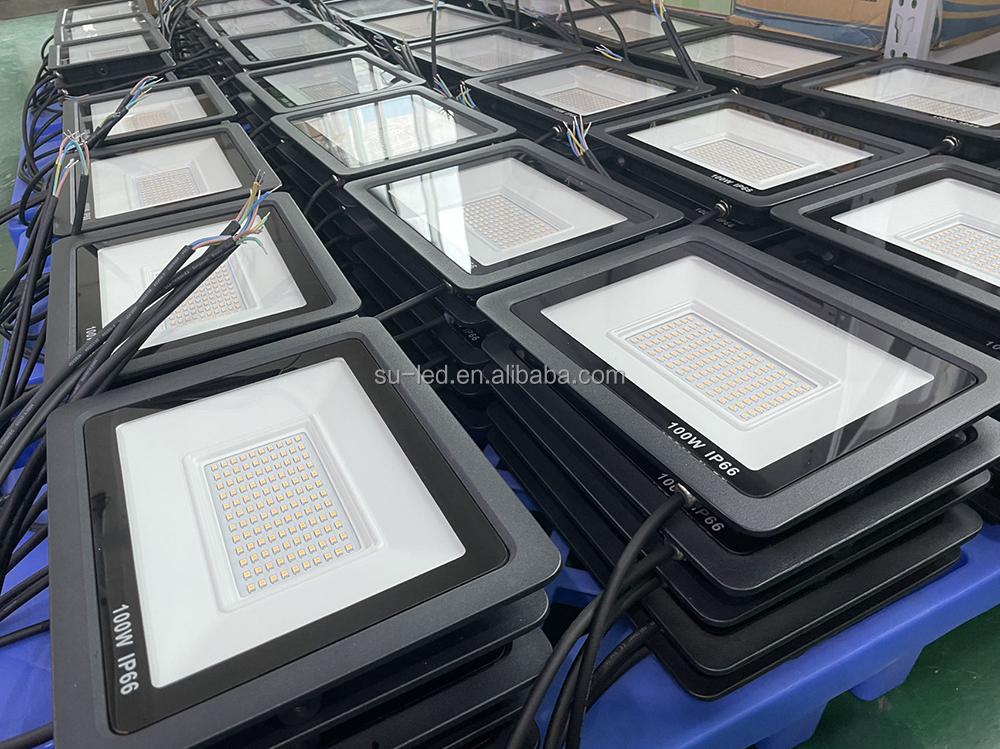

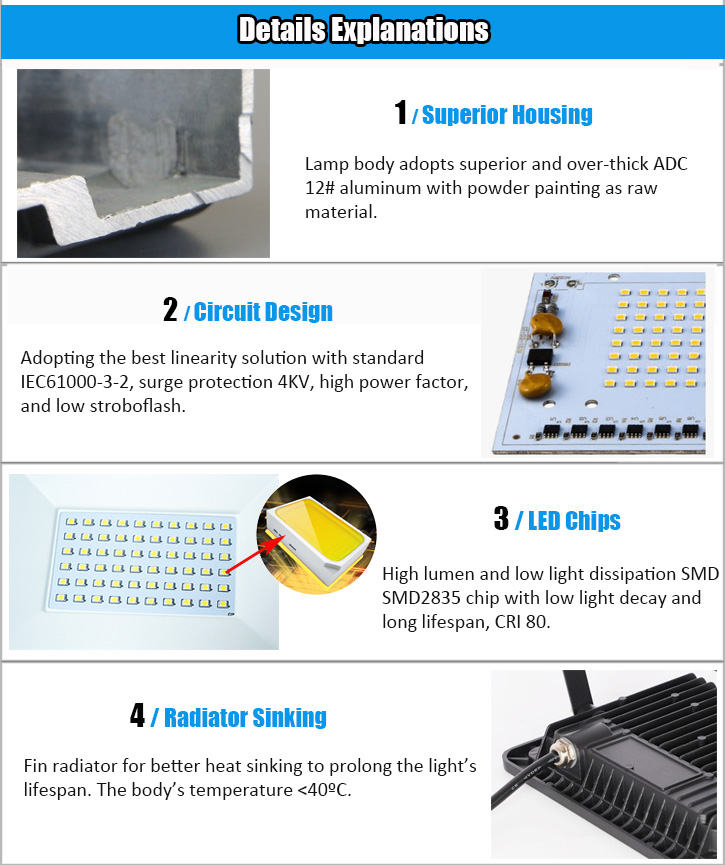

Detailed Product Showcase

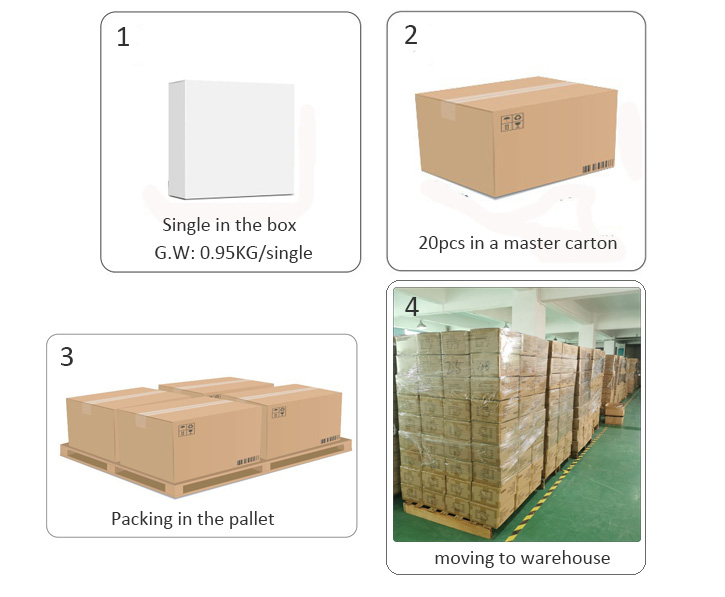

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Services

We provide various technical support and installation instructions.
We can provide comprehensive data for the products you have ordered.
We can customize different color temperatures for the flood lights.
We can design stickers/labels of the flood lights for your brand.
We can adjust creative structures of the flood lights as requested.
We accept logo, image, and packaging customization.
We provide laser marking for the flood lights with no MOQ required.
OEM and ODM requests are fully welcome.

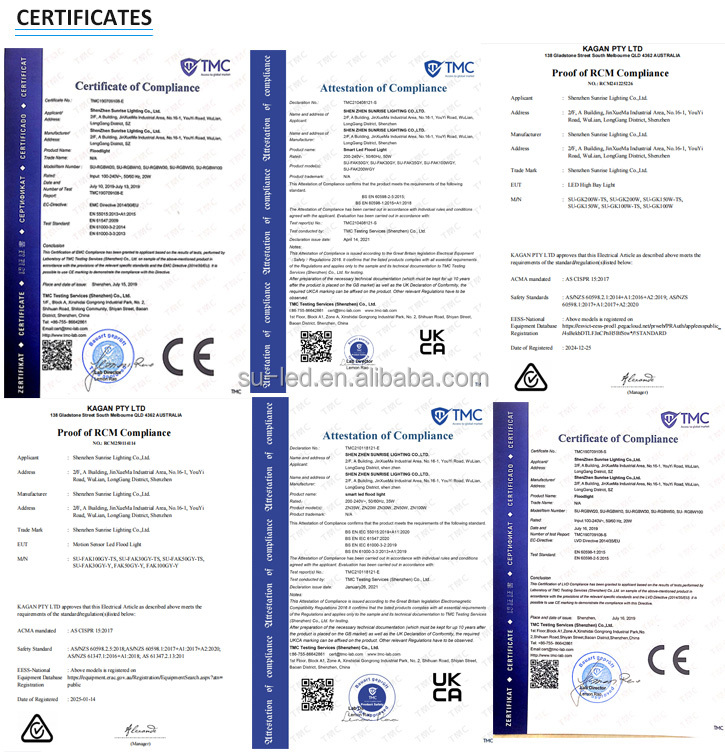

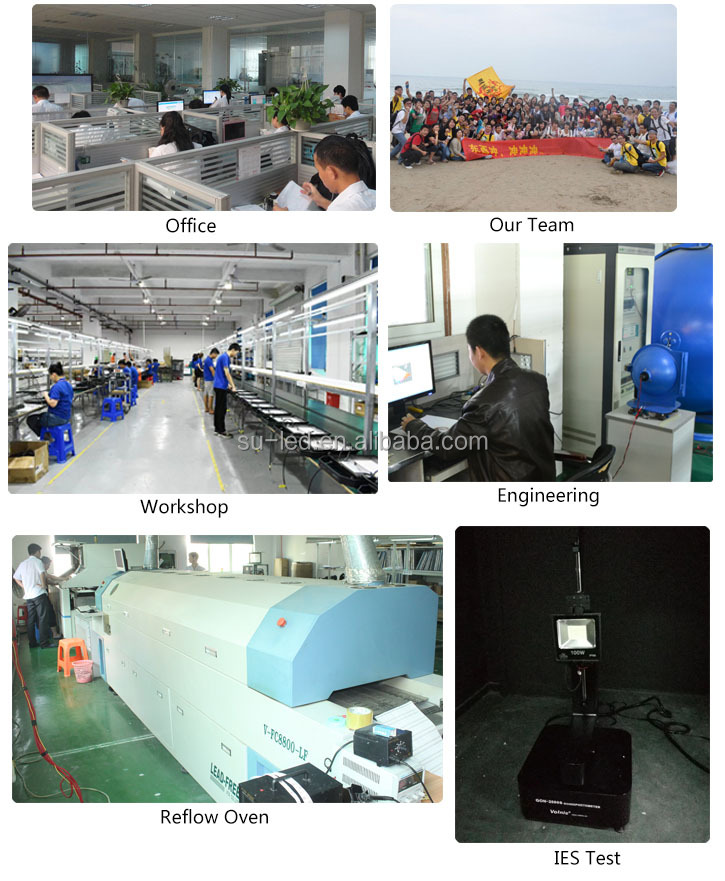

Factory & Quality Certificates

CE certificate no.: RLT2309069-O1

Frequently Asked Questions (FAQ)

Q1: Could I have a sample to test?

Re: Yes, we welcome sample orders for testing and quality check. Mixed samples are acceptable.

Q2: How does your factory handle product quality control?

Re: Quality is our priority. We implement a rigorous 4-step quality control process: raw material inspection, semi-finished product checks, post-assembly inspection, and a mandatory 24-hour aging test.

Q3: Do you support OEM and ODM services?

Re: Yes, we support custom color temperatures, housing colors, logo printing, customized stickers, structural adjustments, and packaging designs.

Q4: What shipping methods do you use, and how long does delivery take?

Re: We regularly ship via express couriers like DHL, UPS, FedEx, or TNT, taking 3-5 working days. Air and sea cargo options, as well as coordination with your preferred forwarder, are also supported.

Q5: Are there options to print my logo directly on the light?

Re: Yes, we can provide laser marking to print your logo or custom imagery directly onto the floodlight housing with no MOQ.

Q6: Do you offer bulk quantity discounts?

Re: Yes, we offer tier-based pricing and discounts for bulk volume orders. Please feel free to reach out with your target requirements.
